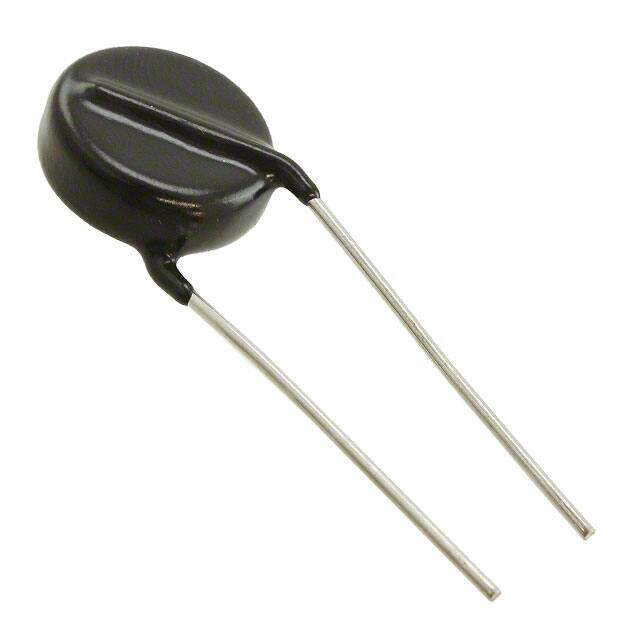

ERZ-E14A821
RoHS
RoHS compliant
RoHS compliantPackage Disc 17.5mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
VARISTOR 820V 7.5KA DISC 17.5MM
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.61688
≥100 USD $0.585728
≥500 USD $0.481184
≥1000 USD $0.449786
≥3000 USD $0.397478
Inventory: 675
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 8.2mm
Width 8.5mm
Diameter 17.5mm
Technical
Clamping Current 100A
Current - Surge 7.5kA
Varistor Voltage 820V
Varistor Voltage (Typ) 820V
Varistor Voltage (Min) 738V
Energy 460J
Varistor Voltage (Max) 902V
Voltage Tolerance 10%
Capacitance @ Frequency 500pF @ 1kHz
Max Surge Current 7.5kA
Clamping Voltage 1.355kV
Lead/Base Style Radial
Max Voltage Rating (DC) 670V
Max Voltage Rating (AC) 510V
Max Supply Voltage 510V
Number of Circuits 1
Lead Pitch 10mm
Voltage - Rated AC 510V
Resistor Type VARISTOR
Depth 8.5mm
Voltage - Rated DC 670V
Capacitance 500pF
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ZNR?
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C TA
Physical
Package / Case Disc 17.5mm
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 17 Weeks
