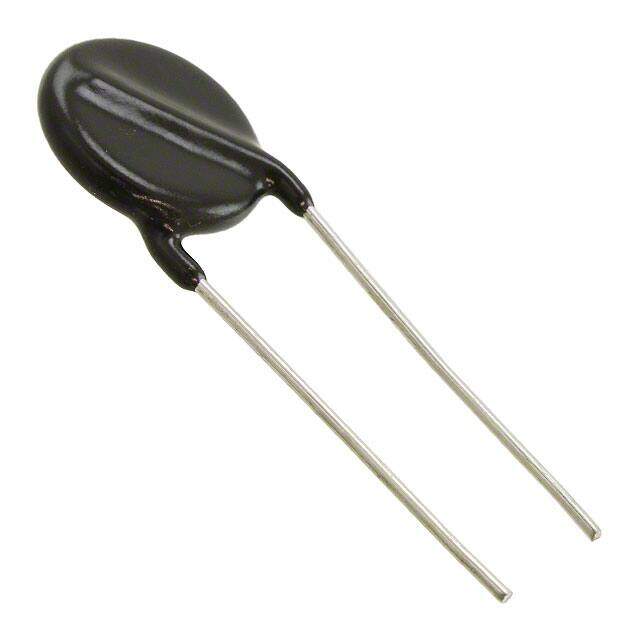

ERZ-E14A331
RoHS
RoHS compliant
RoHS compliantPackage Disc 16.5mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
VARISTOR 330V 10KA DISC 16.5MM
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.713717
≥1 USD $0.713717
≥10 USD $0.673326
≥100 USD $0.635212
≥500 USD $0.599255
≥1000 USD $0.565338
Inventory: 1120
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 16.5mm
Technical
Operating Temperature -40°C~85°C TA
Packaging Bulk
Published 2013
Series ZNR?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Capacitance 900pF
Voltage - Rated DC 270V
Depth 5.9mm
Resistor Type VARISTOR
Voltage - Rated AC 210V
Lead Pitch 10mm
Number of Circuits 1
Max Supply Voltage 210V
Max Voltage Rating (AC) 210V
Max Voltage Rating (DC) 270V
Lead/Base Style Radial
Clamping Voltage 545V
Max Surge Current 10kA
Capacitance @ Frequency 900pF @ 1kHz
Voltage Tolerance 10%
Varistor Voltage (Max) 363V
Energy 228J
Varistor Voltage (Min) 297V
Varistor Voltage (Typ) 330V
Varistor Voltage 330V
Current - Surge 10kA
Clamping Current 100A
Dimensions
Diameter 16.5mm
Width 5.9mm
Thickness 5.6mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
