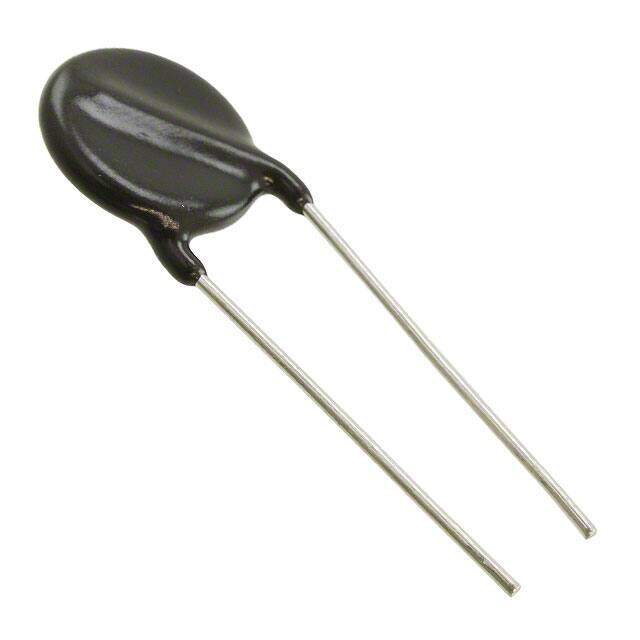

ERZ-E14A241
RoHS
RoHS compliant
RoHS compliantPackage Disc 16.5mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
VARISTOR 240V 10KA DISC 16.5MM
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.472736
≥100 USD $0.385792
≥500 USD $0.243989
≥1000 USD $0.205867
≥3000 USD $0.198238
Inventory: 1091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Plating Tin
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 16.5mm
Technical
Operating Temperature -40°C~85°C TA
Packaging Bulk
Published 2013
Series ZNR?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Capacitance 1.1nF
Voltage - Rated DC 200V
Depth 5.4mm
Resistor Type VARISTOR
Voltage - Rated AC 150V
Lead Pitch 10mm
Number of Circuits 1
Max Supply Voltage 150V
Max Voltage Rating (AC) 150V
Max Voltage Rating (DC) 200V
Lead/Base Style Radial
Clamping Voltage 395V
Max Surge Current 10kA
Capacitance @ Frequency 1100pF @ 1kHz
Voltage Tolerance 10%
Varistor Voltage (Max) 264V
Energy 168J
Varistor Voltage (Min) 216V
Varistor Voltage (Typ) 240V
ESD Protection No
Varistor Voltage 240V
Current - Surge 10kA
Clamping Current 100A
Dimensions
Diameter 16.5mm
Width 5.4mm
Thickness 5.3mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
