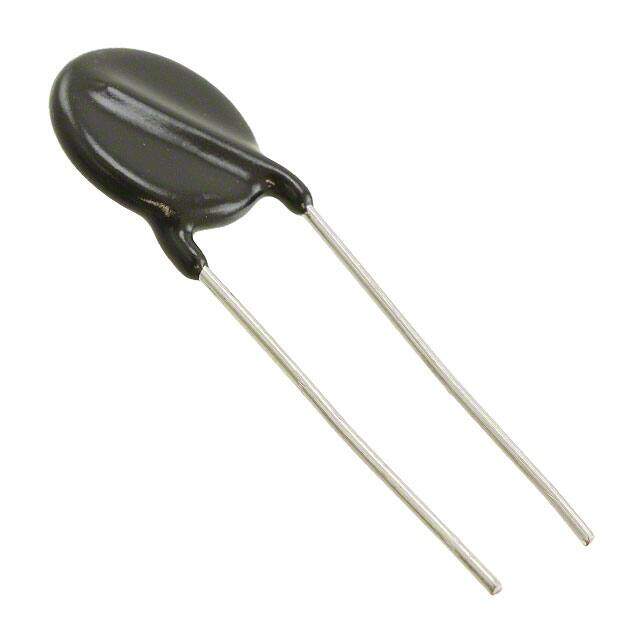

ERZ-E14A221
RoHS
RoHS compliant
RoHS compliantPackage Disc 16.5mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
VARISTOR 220V 10KA DISC 16.5MM
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.472736
≥100 USD $0.385792
≥500 USD $0.243989
≥1000 USD $0.205867
≥3000 USD $0.198238
Inventory: 1139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Plating Tin
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 16.5mm
Technical
Operating Temperature -40°C~85°C TA
Packaging Bulk
Published 2013
Series ZNR?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Capacitance 1.2nF
Voltage - Rated DC 180V
Depth 5.3mm
Resistor Type VARISTOR
Voltage - Rated AC 140V
Lead Pitch 10mm
Max Output Current 10kA
Number of Circuits 1
Max Supply Voltage 140V
Max Voltage Rating (AC) 140V
Max Voltage Rating (DC) 180V
Lead/Base Style Radial
Clamping Voltage 360V
Max Surge Current 10kA
Capacitance @ Frequency 1200pF @ 1kHz
Voltage Tolerance 10%
Varistor Voltage (Max) 242V
Energy 155J
Varistor Voltage (Min) 198V
ESD Protection No
Varistor Voltage 220V
Clamping Current 100A
Dimensions
Diameter 16.5mm
Width 5.3mm
Thickness 5.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
