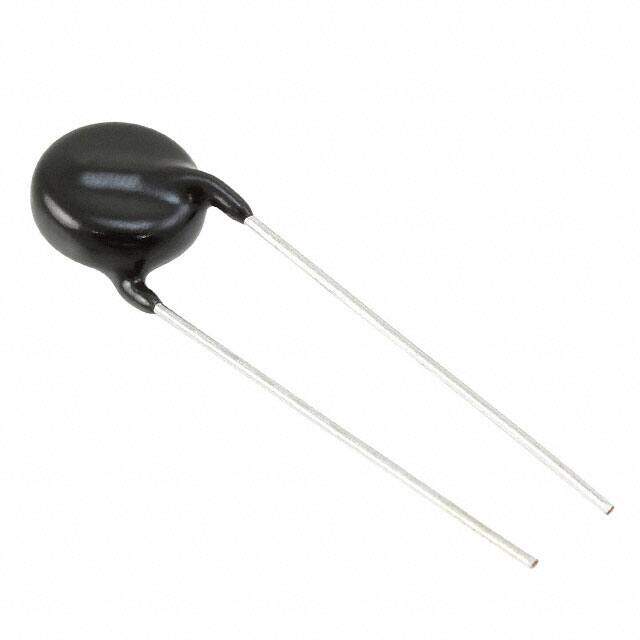

ERZ-E10A511
RoHS
RoHS compliant
RoHS compliantPackage Disc 11.5mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
PANASONIC ELECTRONIC COMPONENTS ERZE10A511TVS Varistor, E10 Series, 385 V, 505 V, 845 V, Disc 11.5mm, Absorber
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.23936
≥100 USD $0.218592
≥500 USD $0.162712
≥1000 USD $0.147488
≥3000 USD $0.122038
Inventory: 10411
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 7mm
Diameter 11.5mm
Technical
Clamping Current 10A
Current - Surge 4.5kA
Maximum DC Volts 410V
Varistor Voltage 510V
Maximum AC Volts 320V
Varistor Voltage (Typ) 510V
Varistor Voltage (Min) 459V
Energy 117J
Varistor Voltage (Max) 561V
Voltage Tolerance 10%
Capacitance @ Frequency 300pF @ 1kHz
Max Surge Current 4.5kA
Clamping Voltage 845V
Max Voltage Rating (DC) 410V
Max Voltage Rating (AC) 320V
Max Supply Voltage 320V
Number of Circuits 1
Lead Pitch 7.5mm
Voltage - Rated AC 385V
Voltage - Rated DC 505V
Power Rating 500mW
Capacitance 300pF
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ZNR?
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C TA
Physical
Package / Case Disc 11.5mm
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 15 Weeks
