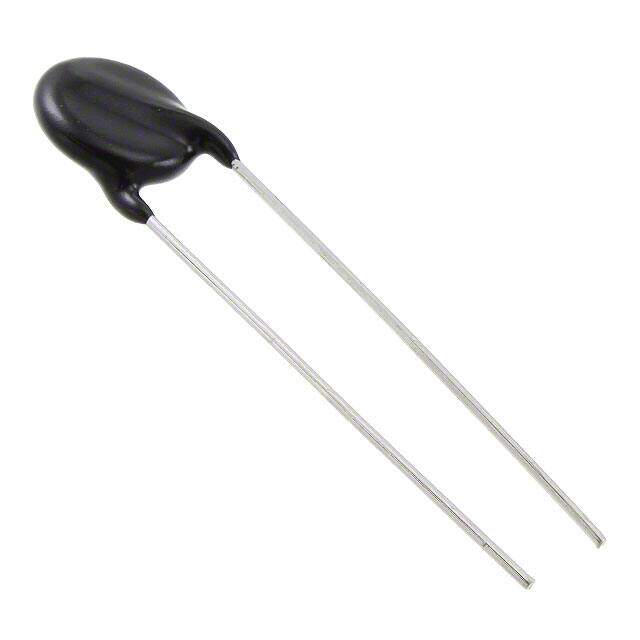

ERZ-E10A221
RoHS
RoHS compliant
RoHS compliantPackage Disc 11.5mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
PANASONIC ELECTRONIC COMPONENTS ERZE10A221TVS Varistor, E10 Series, 175 V, 225 V, 360 V, Disc 11.5mm, Absorber
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.308528
≥100 USD $0.229592
≥500 USD $0.129166
≥1000 USD $0.111223
≥3000 USD $0.104051
Inventory: 1138
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 5.4mm
Diameter 11.5mm
Technical
Clamping Current 10A
Current - Surge 4.5kA
Maximum DC Volts 180V
Varistor Voltage 220V
Maximum AC Volts 140V
Varistor Voltage (Typ) 220V
Varistor Voltage (Min) 198V
Energy 50J
Varistor Voltage (Max) 242V
Voltage Tolerance 10%
Capacitance @ Frequency 600pF @ 1kHz
Max Surge Current 4.5kA
Clamping Voltage 360V
Max Voltage Rating (DC) 180V
Max Voltage Rating (AC) 140V
Max Supply Voltage 140V
Number of Circuits 1
Lead Pitch 7.5mm
Voltage - Rated AC 175V
Voltage - Rated DC 225V
Power Rating 500mW
Capacitance 600pF
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ZNR?
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C TA
Physical
Package / Case Disc 11.5mm
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 15 Weeks
