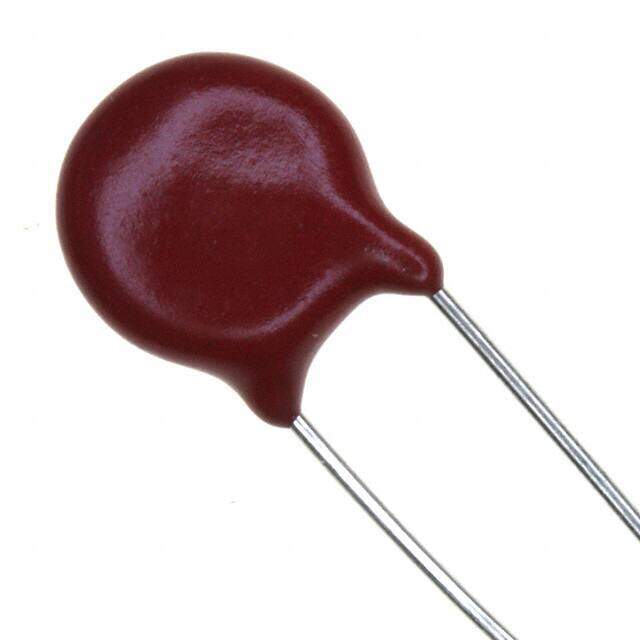

V68ZC2P image
Favorite
V68ZC2P image
Favorite
RoHS
RoHS RoHS compliant
Package Disc 7mm
Category Circuit Protection / TVS - Varistors, MOVs
Description VARISTOR 68V 250A DISC 7MM
PDF
/
Inventory: 7150
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Diameter 7mm

Technical

Clamping Current 2.5A
Varistor Voltage 68V
Varistor Voltage (Min) 61.2V
Energy 3.0J
Varistor Voltage (Max) 74.8V
Capacitance @ Frequency 910pF @ 1MHz
Max Surge Current 250A
Clamping Voltage 135V
Lead/Base Style Radial
Max Voltage Rating (DC) 56V
Max Voltage Rating (AC) 40V
Number of Circuits 1
Lead Pitch 6mm
Voltage - Rated AC 40V
Current Rating 250A
Reach Compliance Code unknown
Resistor Type VARISTOR
Depth 5.6mm
Technology METAL OXIDE FILM
Voltage - Rated DC 56V
Subcategory Non-linear Resistors
Capacitance 600pF
HTS Code 8533.40.40.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series ZC
Published 2005
Packaging Bulk
Operating Temperature -55°C~85°C TA

Physical

Package / Case Disc 7mm
Mounting Type Through Hole
Mount Radial, Through Hole

Supply Chain

Factory Lead Time 16 Weeks
