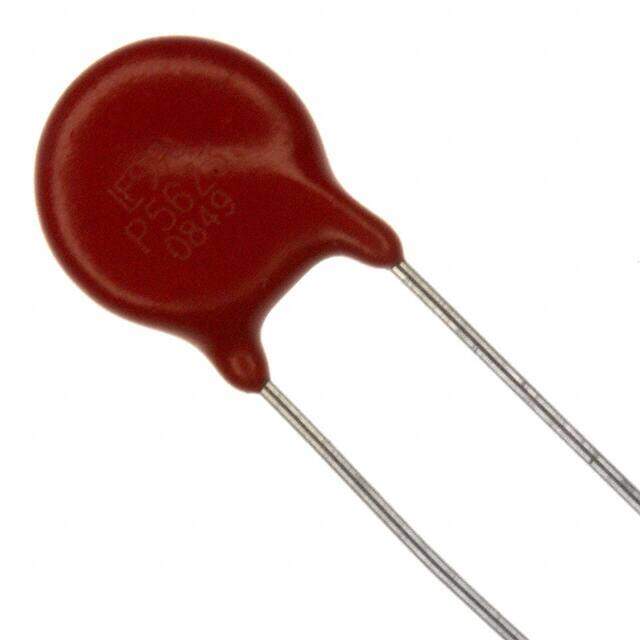

V56ZA3P
RoHS
RoHS compliant
RoHS compliantPackage Disc 10mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
ZA Series 45 VDC 35 V RMS 110 V Clamp 500 A 1800 pF Radial Lead Varistor
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.530895
≥1 USD $0.530895
≥10 USD $0.500843
≥100 USD $0.4725
≥500 USD $0.445752
≥1000 USD $0.420519
Inventory: 1530
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Diameter 10mm
Technical
Clamping Current 5A
Varistor Voltage 62V
Varistor Voltage (Typ) 56V
Varistor Voltage (Min) 50.4V
Energy 5.5J
Varistor Voltage (Max) 61.6V
Capacitance @ Frequency 2150pF @ 1MHz
Max Surge Current 500A
Peak Pulse Current 500A
Clamping Voltage 110V
Lead/Base Style Radial
Max Voltage Rating (DC) 45V
Max Voltage Rating (AC) 35V
Number of Circuits 1
Max Output Current 500A
Lead Pitch 8.5mm
Rated Power Dissipation (P) 0.4W
Voltage - Rated AC 35V
Current Rating 500A
Resistor Type VARISTOR
Depth 5mm
Technology METAL OXIDE FILM
Voltage - Rated DC 45V
Subcategory Non-linear Resistors
Capacitance 1.8nF
HTS Code 8533.40.40.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series ZA
Published 2005
Packaging Bulk
Operating Temperature -55°C~85°C TA
Physical
Terminal Shape WIRE
Package / Case Disc 10mm
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 14 Weeks
