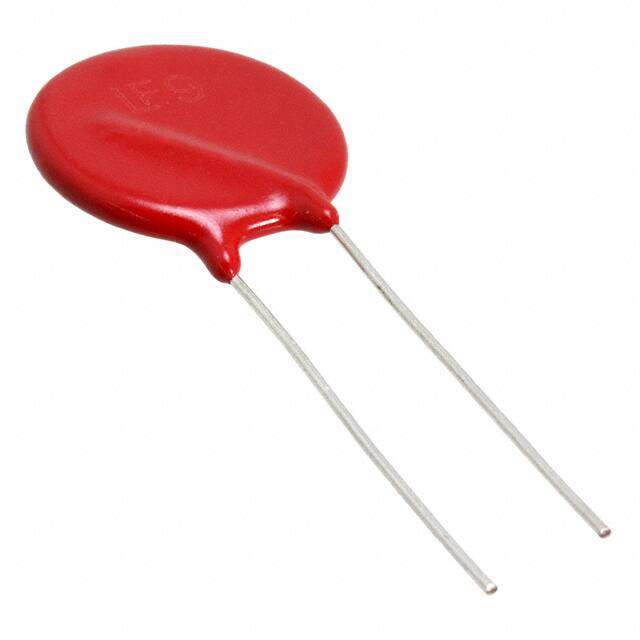

V20E40P
RoHS
RoHS compliant
RoHS compliantPackage Disc 20mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
Radial Varistor 20Mm Rohs/lead Free / Bulk
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.63184
≥100 USD $0.599456
≥500 USD $0.492536
≥1000 USD $0.460381
≥3000 USD $0.406859
Inventory: 291
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.6mm
Technical
Varistor Voltage 68V
Varistor Voltage (Typ) 68V
Varistor Voltage (Min) 61.2V
Energy 150J
Varistor Voltage (Max) 74.8V
Capacitance @ Frequency 8500pF @ 1MHz
Max Surge Current 8kA
Clamping Voltage 135V
Max Voltage Rating (DC) 56V
Max Voltage Rating (AC) 40V
Number of Circuits 1
Lead Pitch 8.5mm
Voltage - Rated AC 40V
Current Rating 1mA
Reach Compliance Code unknown
Resistor Type VARISTOR
Technology METAL OXIDE FILM
Voltage - Rated DC 56V
Subcategory Non-linear Resistors
Capacitance 9nF
HTS Code 8533.40.40.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LV UltraMOV?
Published 2014
Packaging Bulk
Operating Temperature -40°C~85°C TA
Physical
Package / Case Disc 20mm
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 18 Weeks
