V14E510P
RoHS
RoHS compliant
RoHS compliantPackage Disc 14mm
Category Circuit Protection / TVS - Varistors, MOVs
Description

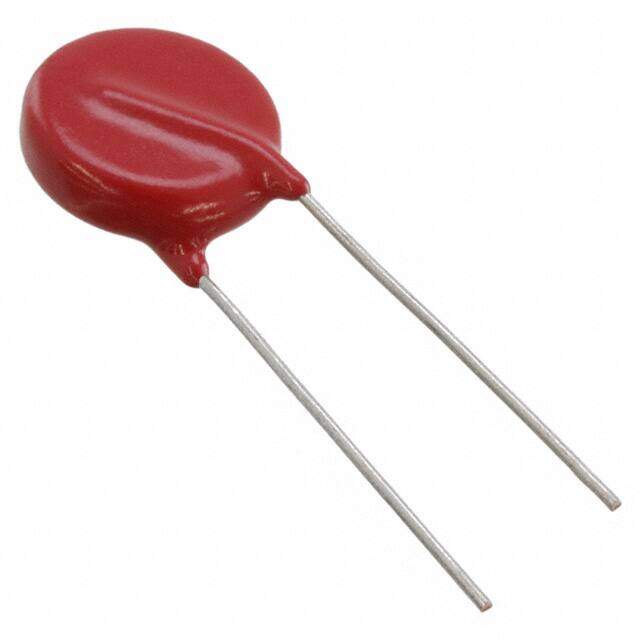

Varistors 510V 14mm Epoxy UltraMOV
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.57552
≥100 USD $0.541024
≥500 USD $0.441496
≥1000 USD $0.410045
≥3000 USD $0.34899
Inventory: 1031
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 14mm
Terminal Shape WIRE
Technical
Operating Temperature -55°C~85°C TA
Packaging Bulk
Published 2005
Series UltraMOV?
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8533.40.40.00
Capacitance 200pF
Subcategory Non-linear Resistors
Voltage - Rated DC 670V
Depth 7.3mm
Resistor Type VARISTOR
Current Rating 50A
Voltage - Rated AC 510V
Rated Power Dissipation (P) 0.6W
Lead Pitch 7.5mm
Number of Circuits 1
Max Voltage Rating (AC) 510V
Max Voltage Rating (DC) 670V
Lead/Base Style Radial
Clamping Voltage 1.355kV
Max Surge Current 6kA
Capacitance @ Frequency 200pF @ 1MHz
Varistor Voltage (Max) 902V
Energy 185J
Varistor Voltage (Min) 738V
Varistor Voltage (Typ) 820V
Varistor Voltage 902V
Clamping Current 50A
Dimensions
Diameter 14mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
