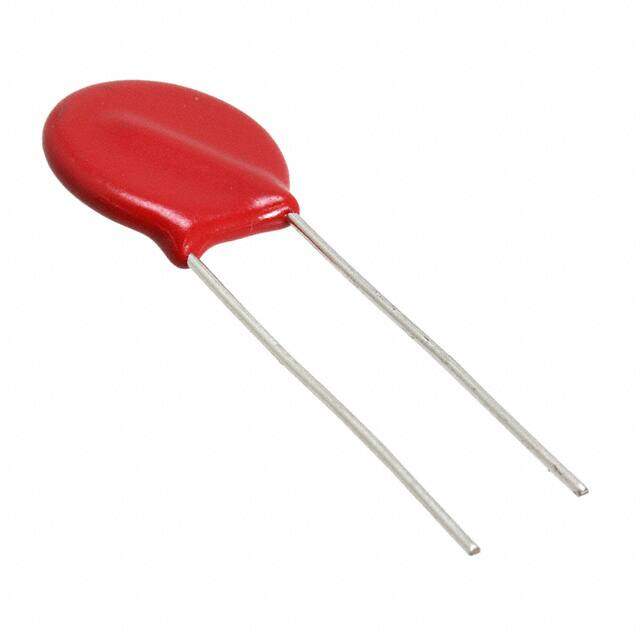

V14E35P
RoHS
RoHS compliant
RoHS compliantPackage Disc 14mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
Varistors 35V 14mm Epoxy UltraMOV
PDF
/
Inventory: 4567
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.6mm
Technical
Varistor Voltage 56V
Varistor Voltage (Typ) 56V
Varistor Voltage (Min) 50.4V
Energy 62J
Varistor Voltage (Max) 61.6V
Capacitance @ Frequency 5000pF @ 1MHz
Max Surge Current 4kA
Clamping Voltage 110V
Max Voltage Rating (DC) 45V
Max Voltage Rating (AC) 35V
Number of Circuits 1
Lead Pitch 8.5mm
Voltage - Rated AC 35V
Current Rating 1mA
Reach Compliance Code unknown
Resistor Type VARISTOR
Technology METAL OXIDE FILM
Voltage - Rated DC 45V
Subcategory Non-linear Resistors
Capacitance 5nF
HTS Code 8533.40.40.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LV UltraMOV?
Published 2014
Packaging Bulk
Operating Temperature -40°C~85°C TA
Physical
Package / Case Disc 14mm
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 14 Weeks
