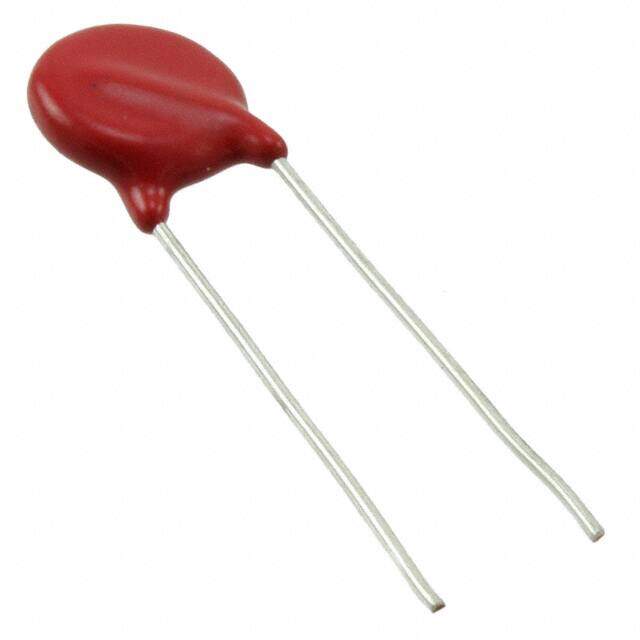

V10E320P
RoHS
RoHS compliant
RoHS compliantPackage Disc 10mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
Varistors 320V 10mm Epoxy UltraMOV
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.40128
≥100 USD $0.37488
≥500 USD $0.299816
≥1000 USD $0.278362
≥3000 USD $0.235541
Inventory: 1279
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 10mm
Terminal Shape WIRE
Technical
Operating Temperature -55°C~85°C TA
Packaging Bulk
Published 2005
Series UltraMOV?
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8533.40.40.00
Capacitance 170pF
Subcategory Non-linear Resistors
Voltage - Rated DC 420V
Depth 5.6mm
Resistor Type VARISTOR
Current Rating 25A
Voltage - Rated AC 320V
Rated Power Dissipation (P) 0.4W
Lead Pitch 7.5mm
Number of Circuits 1
Max Voltage Rating (AC) 320V
Max Voltage Rating (DC) 420V
Lead/Base Style Radial
Clamping Voltage 840V
Max Surge Current 3.5kA
Capacitance @ Frequency 170pF @ 1MHz
Varistor Voltage (Max) 561V
Energy 67J
Varistor Voltage (Min) 459V
Varistor Voltage (Typ) 510V
Varistor Voltage 561V
Clamping Current 25A
Dimensions
Diameter 10mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
