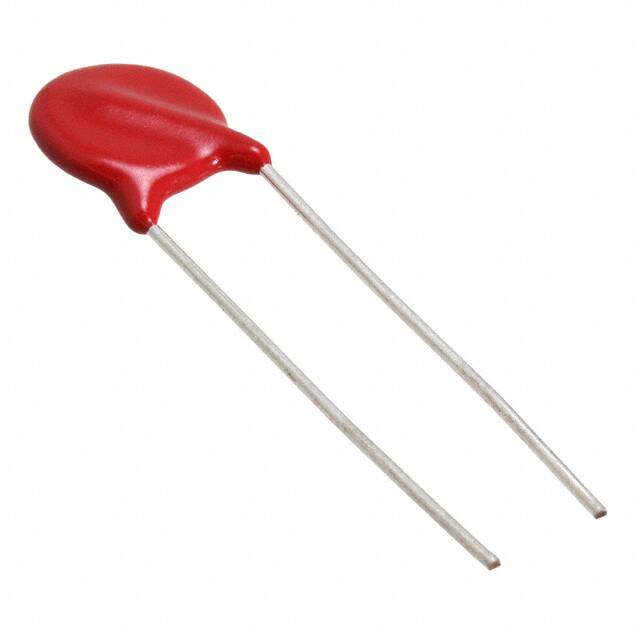

V10E30P
RoHS
RoHS compliant
RoHS compliantPackage Disc 10mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
Varistors 30V 10mm Epoxy UltraMOV
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.3564
≥100 USD $0.332288
≥500 USD $0.265936
≥1000 USD $0.246928
≥3000 USD $0.208947
Inventory: 1484
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 10mm
Technical
Operating Temperature -40°C~85°C TA
Packaging Bulk
Published 2014
Series LV UltraMOV?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8533.40.40.00
Capacitance 2.59nF
Subcategory Non-linear Resistors
Voltage - Rated DC 38V
Technology METAL OXIDE FILM
Depth 5mm
Resistor Type VARISTOR
Reach Compliance Code unknown
Current Rating 1mA
Voltage - Rated AC 30V
Lead Pitch 8.5mm
Number of Circuits 1
Max Voltage Rating (AC) 30V
Max Voltage Rating (DC) 38V
Lead/Base Style Radial
Clamping Voltage 93V
Max Surge Current 2kA
Capacitance @ Frequency 2550pF @ 1MHz
Varistor Voltage (Max) 51.7V
Energy 26J
Varistor Voltage (Min) 42.3V
Varistor Voltage (Typ) 47V
Varistor Voltage 47V
Clamping Current 5A
Dimensions
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
