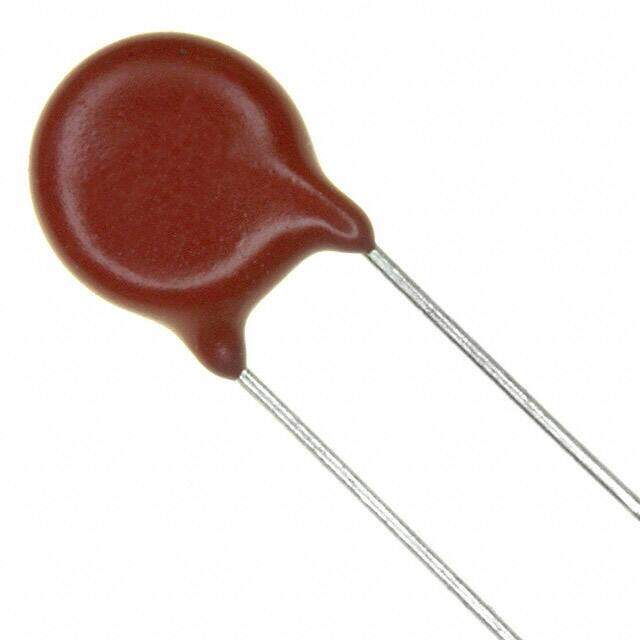

V100ZA4P
RoHS
RoHS compliant
RoHS compliantPackage Disc 10mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
ZA Series 81 VDC 60 V RMS 165 V Clamp 2500 A 900 pF Radial Lead Varistor
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.40128
≥100 USD $0.37488
≥500 USD $0.299816
≥1000 USD $0.278362
≥3000 USD $0.235541
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 10mm
Terminal Shape WIRE
Technical
Operating Temperature -55°C~85°C TA
Packaging Bulk
Published 2005
Series ZA
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8533.40.40.00
Capacitance 900pF
Subcategory Non-linear Resistors
Voltage - Rated DC 81V
Technology METAL OXIDE FILM
Depth 5.6mm
Resistor Type VARISTOR
Voltage - Rated AC 60V
Rated Power Dissipation (P) 0.4W
Lead Pitch 8.5mm
Max Output Current 2.5kA
Number of Circuits 1
Max Voltage Rating (AC) 60V
Max Voltage Rating (DC) 81V
Lead/Base Style Radial
Clamping Voltage 165V
Peak Pulse Current 2.5kA
Max Surge Current 2.5kA
Capacitance @ Frequency 1200pF @ 1MHz
Energy 10J
Varistor Voltage (Min) 90V
Varistor Voltage (Typ) 100V
Varistor Voltage 110V
Clamping Current 25A
Dimensions
Diameter 10mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
