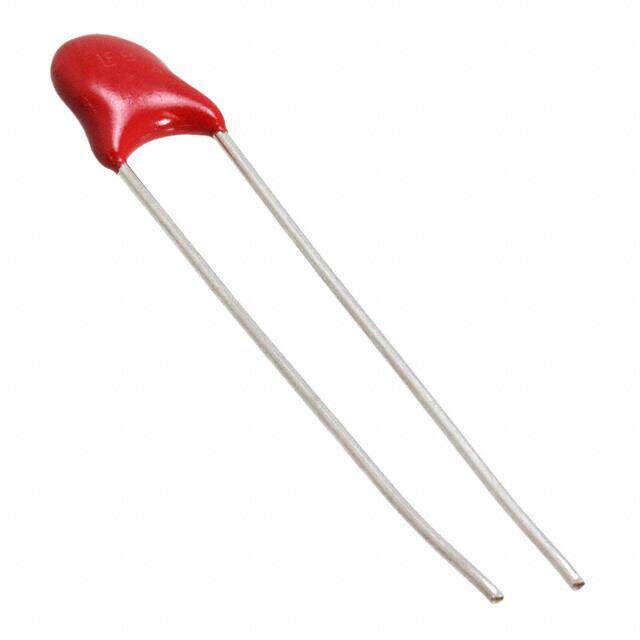

V05P14P
RoHS
RoHS compliant
RoHS compliantPackage Disc 5mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
Varistors 14V 5mm Phenolic UltraMOV
PDF
/
Inventory: 8557
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 5mm
Technical
Operating Temperature -40°C~125°C TA
Packaging Bulk
Published 2014
Series LV UltraMOV?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8533.40.40.00
Capacitance 1.2nF
Subcategory Non-linear Resistors
Voltage - Rated DC 18V
Technology METAL OXIDE FILM
Resistor Type VARISTOR
Reach Compliance Code unknown
Current Rating 1mA
Voltage - Rated AC 14V
Lead Pitch 6mm
Number of Circuits 1
Max Voltage Rating (AC) 14V
Max Voltage Rating (DC) 18V
Clamping Voltage 43V
Max Surge Current 500A
Capacitance @ Frequency 1100pF @ 1MHz
Varistor Voltage (Max) 24.2V
Energy 2.5J
Varistor Voltage (Min) 19.8V
Varistor Voltage (Typ) 22V
Varistor Voltage 22V
Dimensions
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
