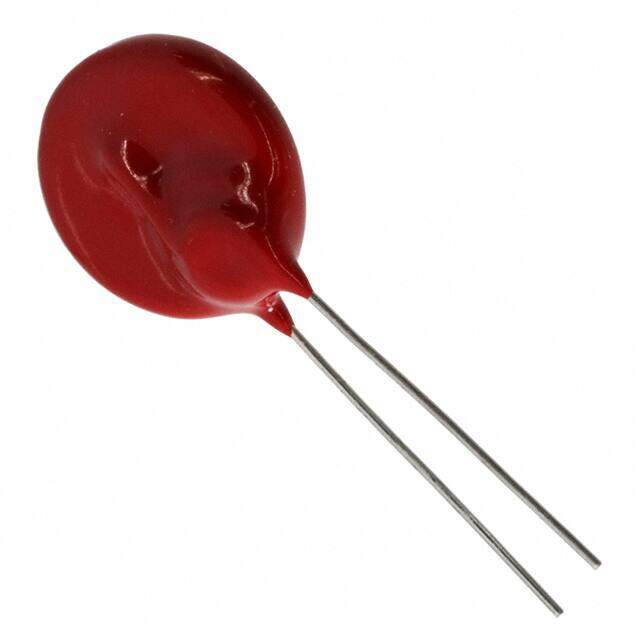

TMOV20RP420E
RoHS
RoHS compliant
RoHS compliantPackage Disc 20mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
Metal Oxide Varistor, 420V, 1.12Kv, Radial
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.8832
≥1 USD $1.8832
≥10 USD $1.69312
≥100 USD $1.597024
≥500 USD $1.360832
≥1000 USD $1.27776
≥3000 USD $1.11804
Inventory: 1160
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter 20mm
Technical
Clamping Current 100A
Varistor Voltage 680V
Varistor Voltage (Typ) 680V
Varistor Voltage (Min) 612V
Energy 320J
Varistor Voltage (Max) 748V
Capacitance @ Frequency 600pF @ 1MHz
Max Surge Current 10kA
Clamping Voltage 1.12kV
Lead/Base Style Radial
Max Voltage Rating (DC) 560V
Max Voltage Rating (AC) 420V
Number of Circuits 1
Lead Pitch 7.5mm
Voltage - Rated AC 420V
Reach Compliance Code unknown
Resistor Type VARISTOR
Depth 11mm
Technology METAL OXIDE FILM
Subcategory Non-linear Resistors
Capacitance 600pF
Terminal Finish Tin (Sn)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Thermally Protected
JESD-609 Code e3
Series TMOV?
Published 2010
Packaging Bulk
Operating Temperature -55°C~85°C TA
Physical
Terminal Shape WIRE
Package / Case Disc 20mm
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 18 Weeks
