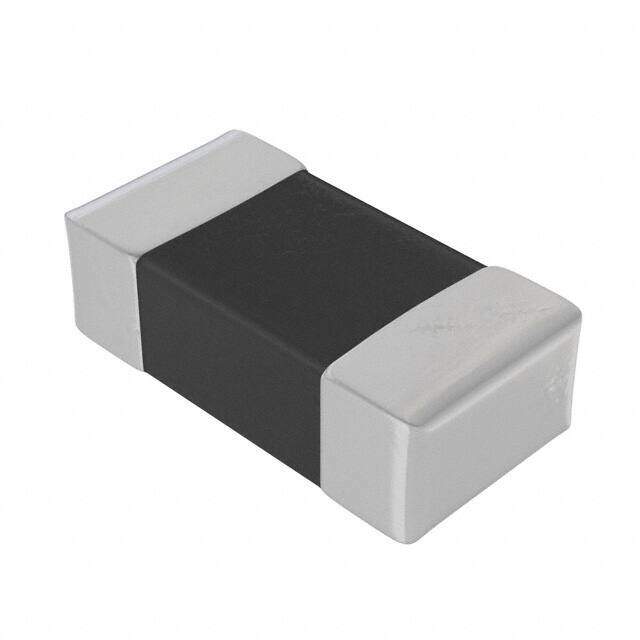

MLVB04V09C005
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Circuit Protection / TVS - Varistors, MOVs
Description
VARISTOR 14V 0402
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.27808
≥100 USD $0.250624
≥500 USD $0.173008
≥1000 USD $0.145728
≥3000 USD $0.118395
Inventory: 1186
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 500μm
Length 1mm
Height 500μm
Technical
Maximum DC Volts 9V
Varistor Voltage 14V
Varistor Voltage (Typ) 14V
Varistor Voltage (Min) 11V
Varistor Voltage (Max) 17V
Capacitance @ Frequency 5pF @ 1MHz
Clamping Voltage 35V
Turn On Delay Time 1 ns
Max Voltage Rating (DC) 9V
Number of Circuits 1
Leakage Current 10μA
Working Voltage 9V
Case Code (Imperial) 0402
Case Code (Metric) 1005
Depth 500μm
Voltage - Rated DC 9V
Capacitance 5pF
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MLVB
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Weight 992.233309μg
Number of Pins 2
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount, MLCV
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
