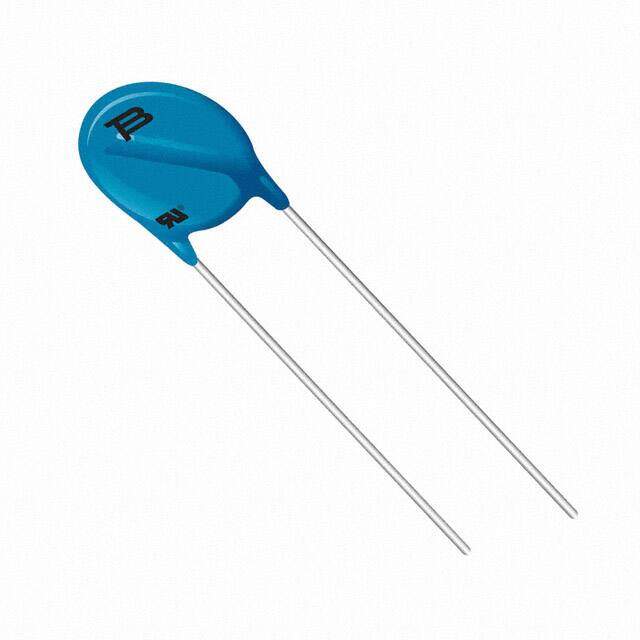

MOV-10D820K
RoHS
RoHS compliant
RoHS compliantPackage Disc 10mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
VARISTOR 82V 2.5KA DISC 10MM
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.4224
≥1 USD $0.4224
≥10 USD $0.31328
≥100 USD $0.274208
≥500 USD $0.177584
≥1000 USD $0.146995
≥3000 USD $0.117586
Inventory: 1081
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 10mm
Terminal Shape WIRE
Technical
Operating Temperature -40°C~105°C TA
Packaging Bulk
Published 2010
Tolerance 10%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8533.40.40.00
Capacitance 1.2nF
Voltage - Rated DC 90V
Depth 7.2mm
Resistor Type VARISTOR
Base Part Number MOV-10
Rated Power Dissipation (P) 0.4W
Lead Pitch 7.5mm
Number of Circuits 1
Max Voltage Rating (AC) 50V
Max Voltage Rating (DC) 65V
Lead/Base Style Radial
Clamping Voltage 135V
Max Surge Current 2.5kA
Capacitance @ Frequency 1200pF @ 1kHz
Voltage Tolerance 10%
Varistor Voltage (Max) 90V
Energy 12J
Varistor Voltage (Min) 74V
Maximum AC Volts 50V
Varistor Voltage 82V
Clamping Current 25A
Dimensions
Diameter 10mm
Width 7.2mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
