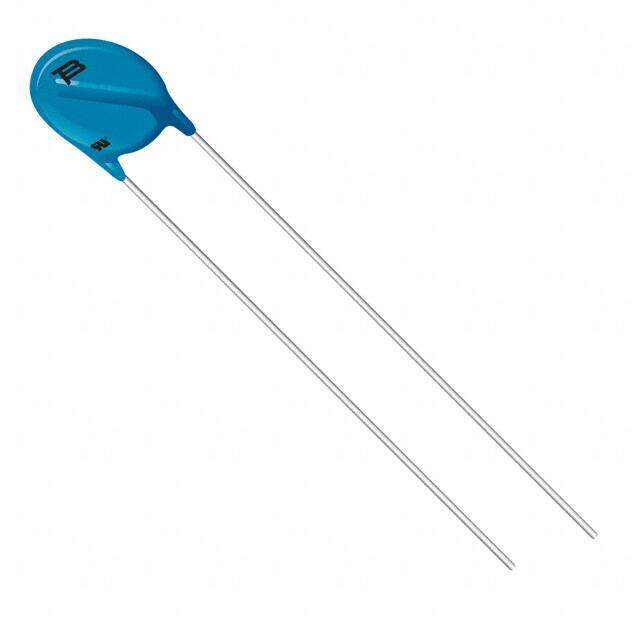

MOV-07D471K
RoHS
RoHS compliant
RoHS compliantPackage Disc 7mm
Category Circuit Protection / TVS - Varistors, MOVs
Description
VARISTOR 470V 1.2KA DISC 7MM
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.24552
≥100 USD $0.13024
≥500 USD $0.052536
≥1000 USD $0.045681
≥3000 USD $0.038834
Inventory: 30410
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 6.8mm
Diameter 7mm
Technical
Clamping Current 10A
Varistor Voltage 470V
ESD Protection No
Maximum AC Volts 300V
Varistor Voltage (Min) 423V
Energy 30J
Voltage Tolerance 10%
Capacitance @ Frequency 105pF @ 1kHz
Max Surge Current 1.2kA
Clamping Voltage 775V
Lead/Base Style Radial
Max Voltage Rating (DC) 385V
Max Voltage Rating (AC) 300V
Number of Circuits 1
Lead Pitch 5mm
Rated Power Dissipation (P) 0.25W
Voltage - Rated AC 300V
Base Part Number MOV-07
Resistor Type VARISTOR
Depth 5mm
Technology METAL OXIDE FILM
Voltage - Rated DC 517V
Capacitance 105pF
HTS Code 8533.40.40.00
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance 10%
Published 2010
Packaging Bulk
Operating Temperature -40°C~85°C TA
Physical
Terminal Shape WIRE
Package / Case Disc 7mm
Mounting Type Through Hole
Mount Radial, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 14 Weeks
