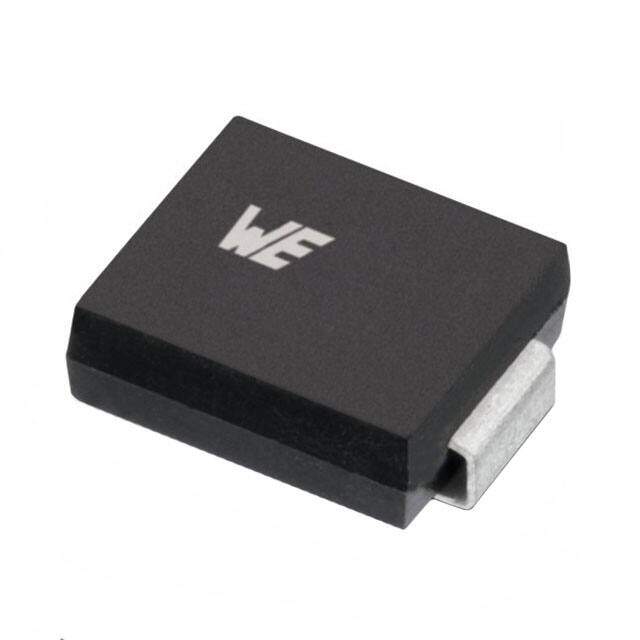

824501751 image
Favorite
824501751 image
Favorite
RoHS
RoHS RoHS compliant
Package DO-214AC, SMA
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 75V 121V DO214AC
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.217599
≥1 USD $0.217599
≥10 USD $0.205282
≥100 USD $0.193667
≥500 USD $0.182703
≥1000 USD $0.172356
Inventory: 976
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Technical

Number of Bidirectional Channels 1
Max Breakdown Voltage 87.7V
Bidirectional Channels 1
Breakdown Voltage 87.7V
Peak Pulse Power 400W
Reverse Standoff Voltage 75V
Peak Pulse Current 3.3A
Voltage - Reverse Standoff (Typ) 75V Max
Clamping Voltage 121V
Voltage - Clamping (Max) @ Ipp 121V
Current - Peak Pulse (10/1000μs) 3.3A
Power - Peak Pulse 400W
Voltage - Breakdown (Min) 87.7V Typ
Power Line Protection No
Polarity Bidirectional
Applications General Purpose
Composition Zener
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Type Zener
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WE-TVSP
Packaging Tape & Reel (TR)
Operating Temperature -65°C~150°C TJ

Physical

Supplier Device Package DO-214AC
Number of Pins 2
Package / Case DO-214AC, SMA
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 17 Weeks
