82402375
RoHS
RoHS compliant

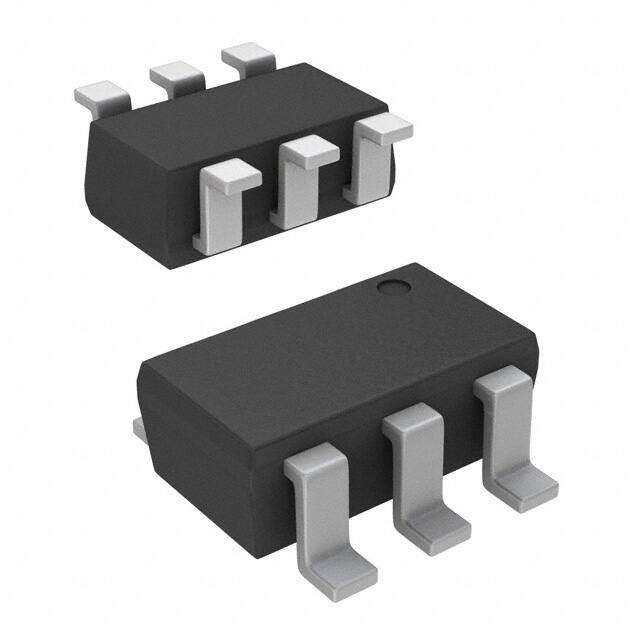

RoHS compliantPackage 6-TSSOP, SC-88, SOT-363
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5V 6.8V SC70-6
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.645762
≥1 USD $0.645762
≥10 USD $0.609215
≥100 USD $0.574727
≥500 USD $0.542192
≥1000 USD $0.511503
Inventory: 9065
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2.2mm
Length 2mm
Height 1mm
Technical
Number of Unidirectional Channels 5
ESD Protection Yes
Max Breakdown Voltage 6V
Capacitance @ Frequency 13pF @ 1MHz
Breakdown Voltage 6V
Unidirectional Channels 5
Test Current 1mA
Direction Unidirectional
Max Surge Current 6A
Reverse Standoff Voltage 5V
Peak Pulse Current 6A
Voltage - Reverse Standoff (Typ) 5V Max
Clamping Voltage 6.8V
Voltage - Clamping (Max) @ Ipp 6.8V Typ
Max Reverse Leakage Current 2.5A
Current - Peak Pulse (10/1000μs) 6A 8/20μs
Voltage - Breakdown (Min) 6V
Power Line Protection No
Element Configuration Common Anode
Number of Channels 5
Polarity Unidirectional
Working Voltage 5V
Capacitance 13pF
Applications General Purpose
Composition Zener
Min Operating Temperature -55°C
Max Operating Temperature 85°C
Type Zener
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series WE-TVS
Packaging Tape & Reel (TR)
Operating Temperature -55°C~85°C TJ
Physical
Supplier Device Package SC-70-6
Number of Pins 6
Package / Case 6-TSSOP, SC-88, SOT-363
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
