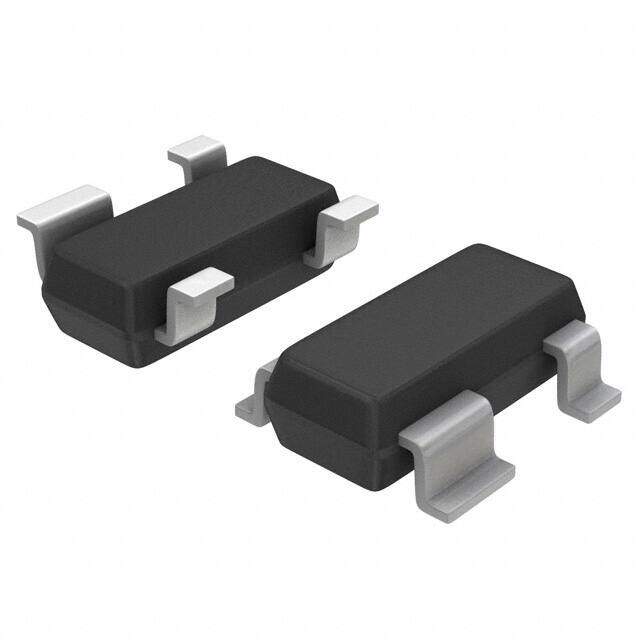

8240026
RoHS
RoHS compliant
RoHS compliantPackage TO-253-4, TO-253AA
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5V 9V SOT143-4
PDF
/
Buying Options
Total Price: USD $0.07
Unit Price: USD $0.06935
≥1 USD $0.06935
≥10 USD $0.057
≥100 USD $0.0551
≥500 USD $0.0532
≥1000 USD $0.05225
Inventory: 1084
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-253-4, TO-253AA
Number of Pins 4
Supplier Device Package SOT-143-4
Technical
Operating Temperature -55°C~85°C TJ
Packaging Tape & Reel (TR)
Series WE-TVS
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Termination SMD/SMT
Type Steering (Rail to Rail)
Max Operating Temperature 85°C
Min Operating Temperature -55°C
Applications General Purpose
Capacitance 1.2pF
Working Voltage 5V
Polarity Bidirectional
Number of Channels 2
Element Configuration Dual
Power Line Protection Yes
Voltage - Breakdown (Min) 6V
Current - Peak Pulse (10/1000μs) 6A 8/20μs
Max Reverse Leakage Current 5A
Voltage - Clamping (Max) @ Ipp 9V
Clamping Voltage 9V
Voltage - Reverse Standoff (Typ) 5V Max
Peak Pulse Current 6A
Reverse Standoff Voltage 5V
Max Surge Current 6A
Direction Unidirectional
Test Current 1mA
Unidirectional Channels 2
Breakdown Voltage 6V
Max Breakdown Voltage 6V
ESD Protection Yes
Number of Bidirectional Channels 2
Dimensions
Height 1.06mm
Length 2.92mm
Width 2.4mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
