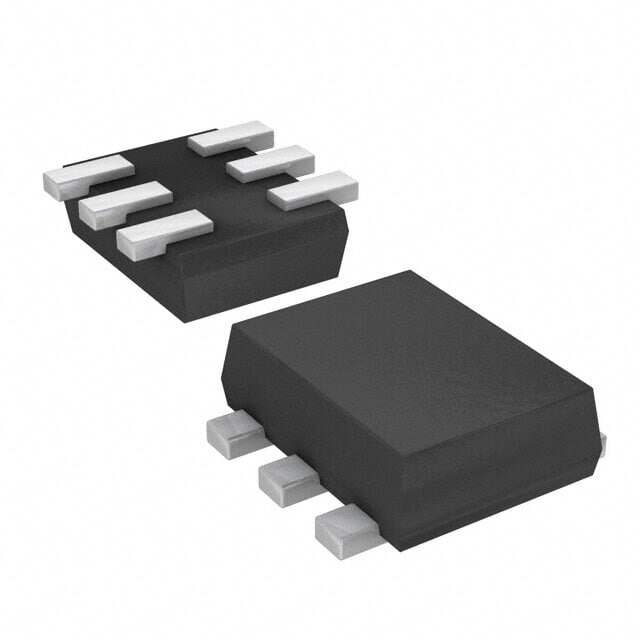

82400152
RoHS
RoHS compliant
RoHS compliantPackage SOT-563, SOT-666
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5V 7.7V SOT563
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.72512
≥100 USD $0.67584
≥500 USD $0.62832
≥1000 USD $0.55528
Inventory: 37275
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOT-563, SOT-666
Number of Pins 6
Supplier Device Package SOT-563
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Series WE-TVS
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Termination SMD/SMT
Type Steering (Rail to Rail)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 2pF
Operating Supply Voltage 6V
Working Voltage 5V
Polarity Bidirectional
Number of Channels 2
Element Configuration Dual
Power Line Protection Yes
Voltage - Breakdown (Min) 6V
Current - Peak Pulse (10/1000μs) 6A 8/20μs
Max Reverse Leakage Current 5A
Voltage - Clamping (Max) @ Ipp 7.7V Typ
Clamping Voltage 7.7V
Voltage - Reverse Standoff (Typ) 5V Max
Peak Pulse Current 6A
Reverse Standoff Voltage 5V
Max Surge Current 6A
Direction Unidirectional
Test Current 1mA
Unidirectional Channels 2
Breakdown Voltage 6V
Max Breakdown Voltage 6V
ESD Protection Yes
Number of Bidirectional Channels 2
Dimensions
Height 550μm
Length 1.6mm
Width 1.6mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
