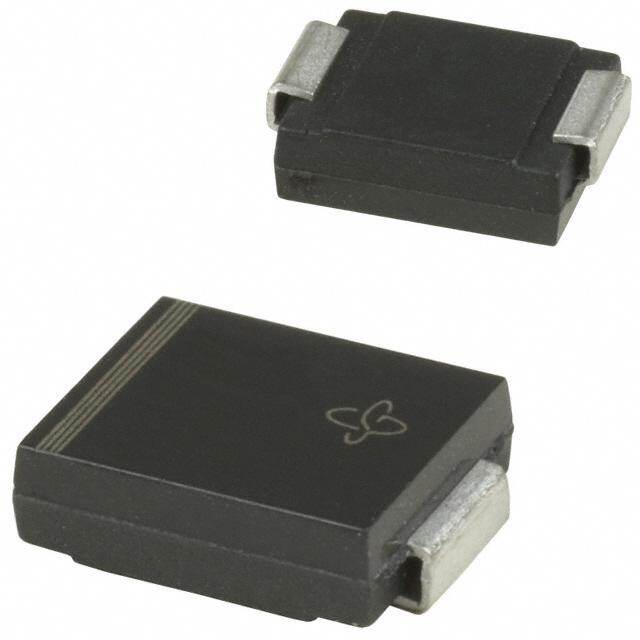

SMC5K13AHM3/I image
Favorite
SMC5K13AHM3/I image
Favorite

SMC5K13AHM3/I

Vishay Semiconductor
RoHS
/
Package SMC
Category Circuit Protection / TVS - Diodes
Description
PDF
/
Inventory: 3436
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 27 Weeks

Physical

Mount Surface Mount
Package / Case SMC
Diode Element Material SILICON

Technical

Packaging Tape & Reel (TR)
Published 2016
JESD-609 Code e3
Moisture Sensitivity Level (MSL) 1
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Composition Zener
Additional Feature EXCELLENT CLAMPING CAPABILITY
Technology AVALANCHE
Terminal Position DUAL
Terminal Form J BEND
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code R-PDSO-J2
Number of Elements 1
Polarity UNIDIRECTIONAL
Configuration SINGLE
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Power Line Protection No
Voltage - Breakdown (Min) 14.4V
Peak Pulse Current 232.6A
Reverse Standoff Voltage 13V
Peak Pulse Power 5kW
Non-rep Peak Rev Power Dis-Max 5000W
Number of Unidirectional Channels 1
Voltage - Clamping 21.5V

Compliance

RoHS Status RoHS Compliant
