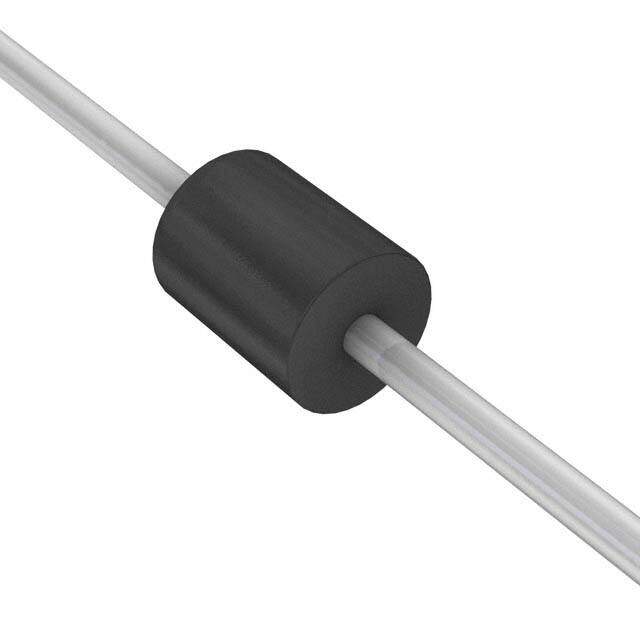

TMPG06-39AHE3/73 image
Favorite
TMPG06-39AHE3/73 image
Favorite
RoHS
RoHS RoHS compliant
Package MPG06, Axial
Category Circuit Protection / TVS - Diodes
Description TVS Diodes - Transient Voltage Suppressors 400W 39V 5% Unidir
PDF
/
Inventory: 2431
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case MPG06, Axial
Number of Pins 2
Supplier Device Package MPG06

Technical

Operating Temperature -65°C~185°C TJ
Packaging Tape & Box (TB)
Published 2016
Series Automotive, AEC-Q101
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Type Zener
Max Operating Temperature 185°C
Min Operating Temperature -65°C
Applications Automotive
Max Power Dissipation 400W
Base Part Number TMPG06
Operating Supply Voltage 33.3V
Polarity Unidirectional
Element Configuration Single
Power Line Protection No
Voltage - Breakdown (Min) 37.1V
Power - Peak Pulse 400W
Current - Peak Pulse (10/1000μs) 7.4A
Max Reverse Leakage Current 1μA
Voltage - Clamping (Max) @ Ipp 53.9V
Clamping Voltage 53.9V
Voltage - Reverse Standoff (Typ) 33.3V
Peak Pulse Current 7.4A
Reverse Standoff Voltage 33.3V
Max Surge Current 7.4A
Peak Pulse Power 400W
Direction Unidirectional
Test Current 1mA
Breakdown Voltage 37.1V
Unidirectional Channels 1

Compliance

RoHS Status ROHS3 Compliant
