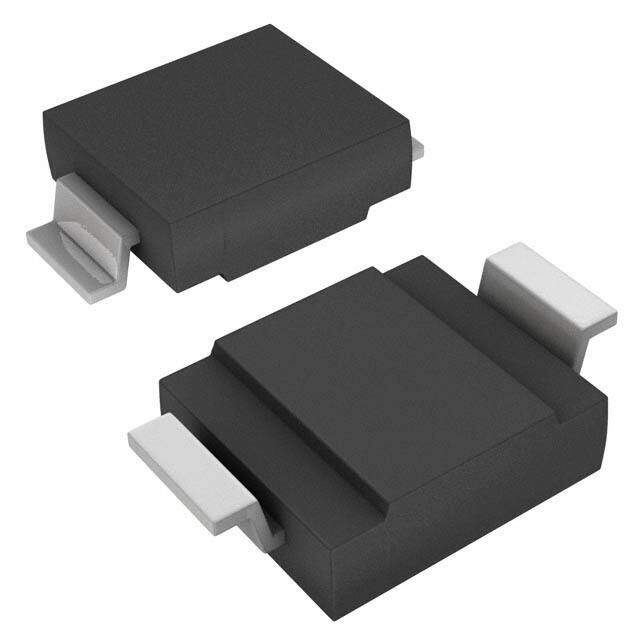

SMCG36CA-E3/57T
RoHS
RoHS compliant
RoHS compliantPackage DO-215AB, SMC Gull Wing
Category Circuit Protection / TVS - Diodes
Description
TVS Diodes - Transient Voltage Suppressors 1500W 36V Bidirect
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.70752
≥100 USD $0.55044
Inventory: 1299
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 29 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-215AB, SMC Gull Wing
Number of Pins 2
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2012
Series TransZorb?
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Zener
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Additional Feature EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Subcategory Transient Suppressors
Max Power Dissipation 1.5kW
Technology AVALANCHE
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number SMCG
Pin Count 2
Operating Supply Voltage 36V
Number of Elements 1
Number of Channels 1
Leakage Current 1μA
Element Configuration Single
Power Dissipation 1.5kW
Power Line Protection No
Power - Peak Pulse 1500W 1.5kW
Max Reverse Leakage Current 1μA
Voltage - Clamping (Max) @ Ipp 58.1V
Clamping Voltage 58.1V
Peak Pulse Current 25.8A
Reverse Standoff Voltage 36V
Max Surge Current 200A
Peak Pulse Power 1.5kW
Direction Bidirectional
Test Current 1mA
Breakdown Voltage 40V
Reverse Breakdown Voltage 40V
Max Breakdown Voltage 44.2V
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
