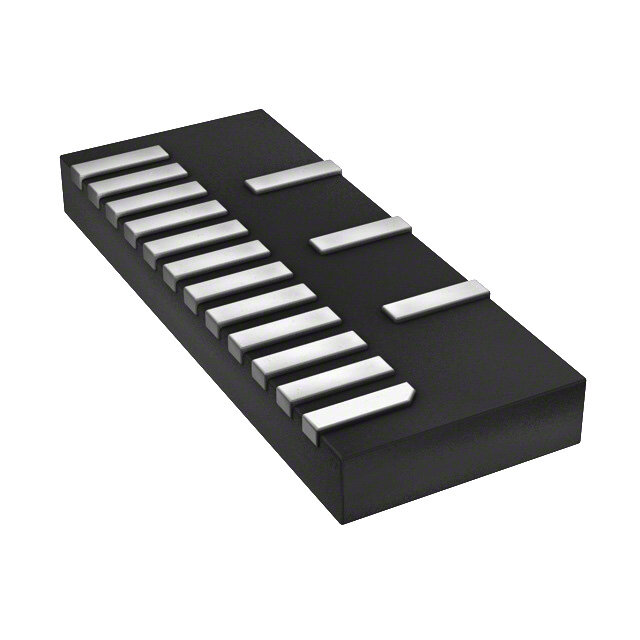

TPD8S009DSMR

Texas Instruments
RoHS
RoHS RoHS compliant
Package 15-SMD, No Lead
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 5.5V 15SON
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.15808
≥100 USD $0.922064
≥500 USD $0.78019
≥1000 USD $0.66198
Inventory: 11640
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)

Physical

Mounting Type Surface Mount
Package / Case 15-SMD, No Lead
Surface Mount YES
Number of Pins 15

Technical

Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 15
Termination SMD/SMT
ECCN Code EAR99
Type Steering (Rail to Rail)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications HDMI
Capacitance 800FF
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Depth 6.5mm
Base Part Number TPD8S009
Pin Count 15
Operating Supply Voltage 5.5V
Working Voltage 5.5V
Number of Channels 8
Max Supply Voltage 6V
Min Supply Voltage -300mV
Power Line Protection No
Voltage - Reverse Standoff (Typ) 5.5V Max
Peak Pulse Current 2.5A
Reverse Standoff Voltage 5.5V
Peak Pulse Power 25W
Direction Unidirectional
Test Current 1mA
Breakdown Voltage 9V
ESD Protection Yes

Dimensions

Height 800μm
Length 2.5mm
Width 6.5mm
Thickness 750μm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
