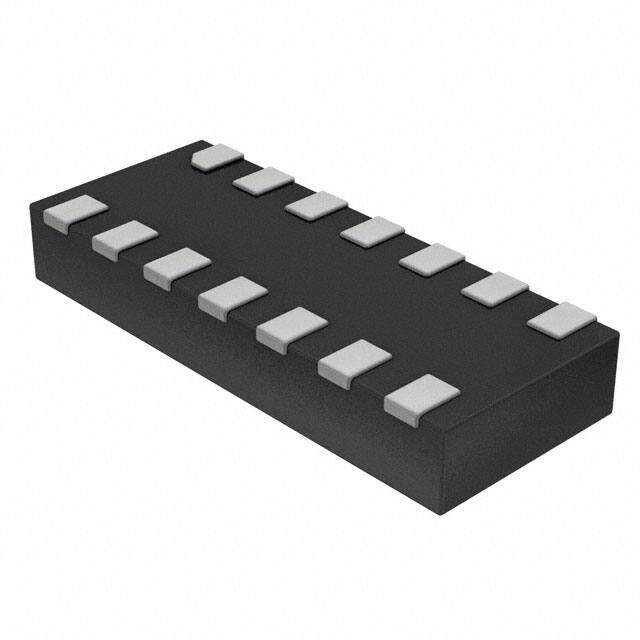

TPD6E05U06RVZR
RoHS
RoHS compliant
RoHS compliantPackage 14-UFDFN
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5.5V 14V 14USON
PDF
/
Buying Options
Total Price: USD $0.06
Unit Price: USD $0.055745
≥1 USD $0.055745
≥10 USD $0.044869
≥100 USD $0.03943
≥500 USD $0.03535
≥1000 USD $0.41135
Inventory: 1140
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 500μm
Width 1.35mm
Length 3.5mm
Height 550μm
Technical
Breakdown Voltage 6V
Unidirectional Channels 6
Direction Unidirectional
Peak Pulse Power 40W
Reverse Standoff Voltage 5.5V
Peak Pulse Current 2.5A
Voltage - Reverse Standoff (Typ) 5.5V Max
Clamping Voltage 14V
Voltage - Clamping (Max) @ Ipp 14V
Current - Peak Pulse (10/1000μs) 2.5A 8/20μs
Power Line Protection Yes
Leakage Current 10nA
Interface Ethernet, HDMI, LVDS, PCIe, SATA, USB
Number of Channels 6
Configuration SINGLE
Polarity Bidirectional
Working Voltage 5.5V
Number of Elements 1
Base Part Number TPD6E05U06
Depth 1.45mm
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Technology AVALANCHE
Max Power Dissipation 40W
Subcategory Transient Suppressors
HTS Code 8542.39.00.01
Additional Feature ULTRA LOW CAPACITANCE
Applications HDMI
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Steering (Rail to Rail)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Diode Element Material SILICON
Number of Pins 14
Package / Case 14-UFDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 12 Weeks
Alternative Model
