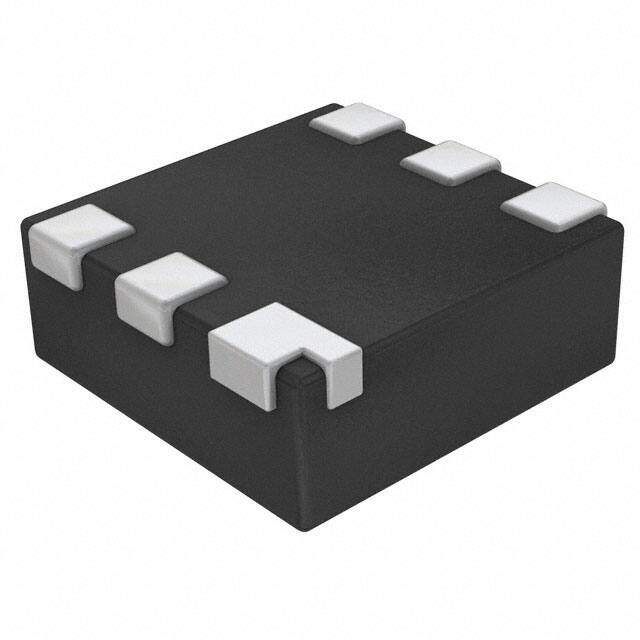

TPD5E003DPFR
RoHS
RoHS compliant
RoHS compliantPackage 6-XFDFN
Category Circuit Protection / TVS - Diodes
Description
ESD Suppressors Five CH Space Saving ESD Protect Device
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
≥10 USD $0.46904
≥100 USD $0.325864
≥500 USD $0.254408
≥1000 USD $0.206782
≥3000 USD $0.184853
Inventory: 35845
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 370μm
Width 1mm
Length 1mm
Height 400μm
Technical
Number of Unidirectional Channels 5
Capacitance @ Frequency 10pF @ 1MHz
Bidirectional Channels 4
Breakdown Voltage 6V
Unidirectional Channels 5
Peak Pulse Power 40W
Reverse Standoff Voltage 5V
Peak Pulse Current 10A
Voltage - Reverse Standoff (Typ) 5V Max
Clamping Voltage 19.5V
Current - Peak Pulse (10/1000μs) 3A 8/20μs
Power Line Protection No
Polarity Unidirectional
Working Voltage 5V
Operating Supply Voltage 5.5V
Base Part Number TPD5E003
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Max Power Dissipation 40W
Subcategory Transient Suppressors
Capacitance 8.4pF
Applications General Purpose
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Number of Pins 6
Package / Case 6-XFDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
