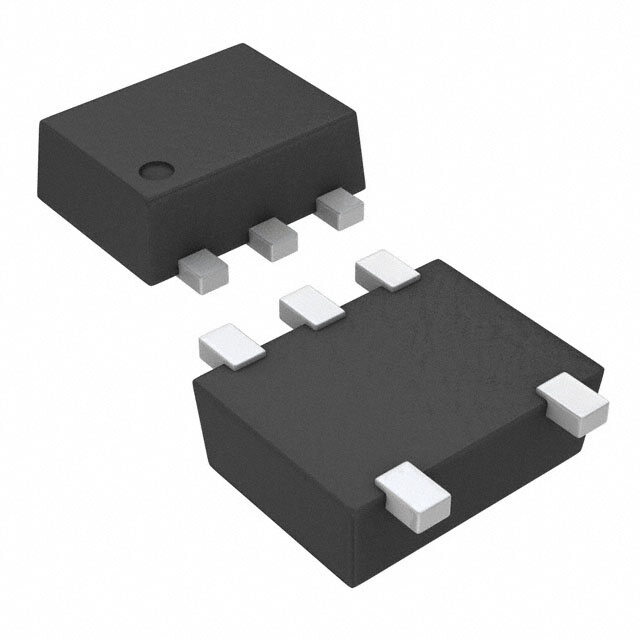

TPD4E002DRLRG4 image
Favorite
TPD4E002DRLRG4 image
Favorite

TPD4E002DRLRG4

Texas Instruments
RoHS
/
Package SOT
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 3V SOT5
PDF
/
Buying Options
Total Price: USD $0.13
Unit Price: USD $0.1349
≥1 USD $0.1349
≥10 USD $0.1102
≥100 USD $0.10735
≥500 USD $0.10355
≥1000 USD $0.1007
Inventory: 120893
Minimum: 1
-
+

Technical Details

Physical

Package / Case SOT
Surface Mount YES
Number of Pins 5
Weight 2.806603mg
Diode Element Material SILICON

Technical

Packaging Tape and Reel
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 1
Number of Terminations 5
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Zener
Capacitance 11pF
Subcategory Transient Suppressors
Terminal Position DUAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) 260
Depth 1.2mm
Pin Count 5
Operating Supply Voltage 3V
Number of Elements 4
Polarity Unidirectional
Interface GPIO, USB
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Voltage - Breakdown (Min) 6V
Current - Test 1mA
Reverse Standoff Voltage 3V
Peak Pulse Power 35W
Rep Pk Reverse Voltage-Max 6.7V
Reverse Breakdown Voltage 6.1V
Current - Leakage 100nA
Voltage - Breakdown 6.1V

Dimensions

Length 1.6mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
