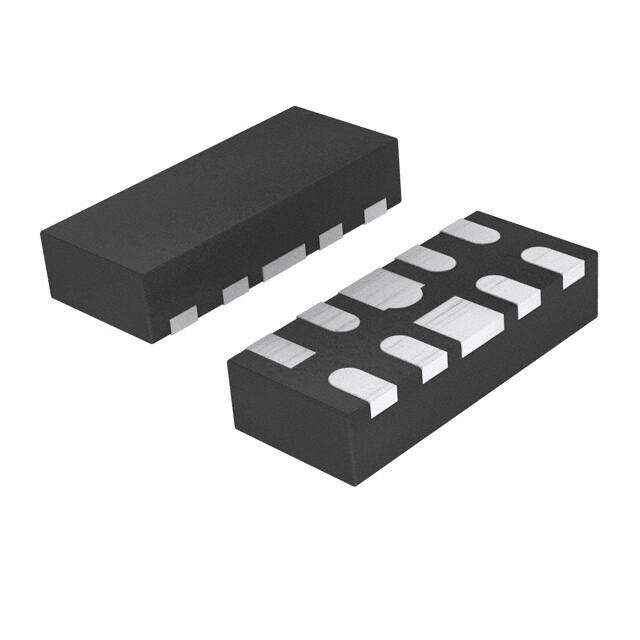

ESD224DQAR
RoHS
RoHS compliant
RoHS compliantPackage 10-UFDFN
Category Circuit Protection / TVS - Diodes
Description
ESD224 4-CHANNEL LOW CAP ESD
PDF
/
Buying Options
Total Price: USD $0.46
Unit Price: USD $0.4576
≥1 USD $0.4576
≥10 USD $0.3564
≥100 USD $0.213576
≥500 USD $0.197754
≥1000 USD $0.134473
Inventory: 11168
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Non-rep Peak Rev Power Dis-Max 17W
Capacitance @ Frequency 0.5pF @ 1MHz
Rep Pk Reverse Voltage-Max 3.6V
Bidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3.6V Max
Voltage - Clamping (Max) @ Ipp 14V
Current - Peak Pulse (10/1000μs) 2A 8/20μs
Power - Peak Pulse 17W
Voltage - Breakdown (Min) 7.9V
Power Line Protection No
Polarity BIDIRECTIONAL
Number of Elements 4
JESD-30 Code R-PDSO-N10
Base Part Number ESD224
Terminal Position DUAL
Technology AVALANCHE
Applications Ethernet, HDMI, USB
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Zener
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case 10-UFDFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
