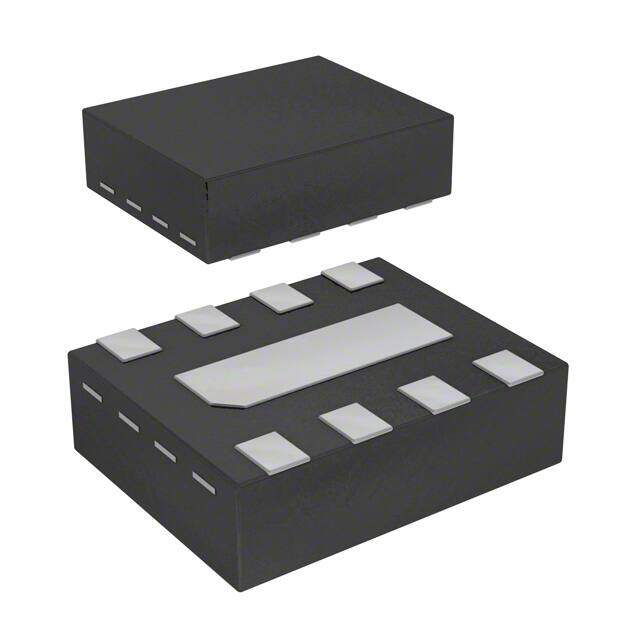

USBULC1606-4M8 image
Favorite
USBULC1606-4M8 image
Favorite

USBULC1606-4M8

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 8-UFQFN Exposed Pad
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 28VC 8UQFN
PDF
/
Inventory: 929
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Steering (Rail to Rail)
Applications General Purpose
Capacitance 1.1pF
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position DUAL
Depth 1.35mm
Base Part Number USBUL
Pin Count 8
Number of Elements 2
Configuration SEPARATE, 2 ELEMENTS
Leakage Current 100nA
Power Line Protection Yes
Current - Peak Pulse (10/1000μs) 2.5A 8/20μs
Clamping Voltage 28V
Peak Pulse Current 2.5A
Peak Pulse Power 70W
Direction Unidirectional
Unidirectional Channels 3
Breakdown Voltage-Max 9.2V
Series USB
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C TA

Dimensions

Length 1.7mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant

Physical

Diode Element Material SILICON
Number of Pins 8
Package / Case 8-UFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
