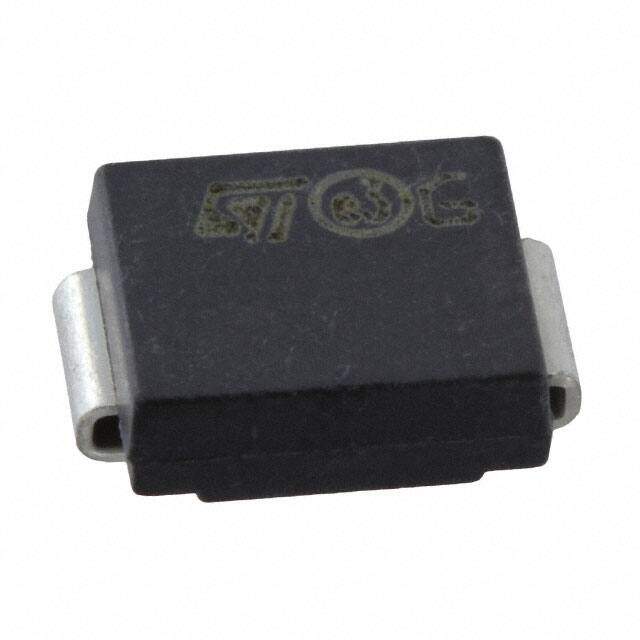

STIEC45-30ACS
RoHS
RoHS compliant
RoHS compliantPackage DO-214AB, SMC
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 30V 55V SMC
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 7546
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Rep Pk Reverse Voltage-Max 30V
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30V
Voltage - Clamping (Max) @ Ipp 55V
Current - Peak Pulse (10/1000μs) 500A 8/20μs
Voltage - Breakdown (Min) 33.3V
Power Line Protection No
Configuration SINGLE
Polarity BIDIRECTIONAL
Number of Elements 1
JESD-30 Code R-PDSO-C2
Base Part Number STIEC45
Terminal Form C BEND
Terminal Position DUAL
Technology AVALANCHE
Applications General Purpose
Type Zener
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series STIEC, TRANSIL?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case DO-214AB, SMC
Mounting Type Surface Mount
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 8 months ago)
