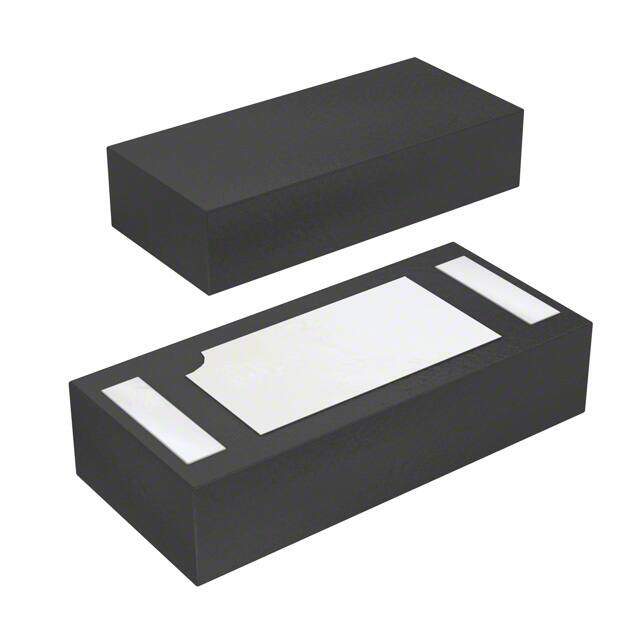

SPT02-236DDB
RoHS
RoHS compliant
RoHS compliantPackage 2-WDFN Exposed Pad
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 36VWM 46VC 2QFN
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.7832
≥1 USD $0.7832
≥10 USD $0.68112
≥100 USD $0.471768
≥500 USD $0.39417
≥1000 USD $0.335465
Inventory: 7049
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-WDFN Exposed Pad
Technical
Operating Temperature -40°C~150°C TJ
Packaging Cut Tape (CT)
Series SPT
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Breakdown Voltage 41.4V
Unidirectional Channels 2
Peak Pulse Power 1.4kW
Max Surge Current 3A
Reverse Standoff Voltage 36V
Peak Pulse Current 2A
Clamping Voltage 46V
Current - Peak Pulse (10/1000μs) 2A 8/20μs
Power - Peak Pulse 1400W 1.4kW
Voltage - Breakdown (Min) 38V
Power Line Protection No
Number of Channels 1
Polarity Unidirectional
Operating Supply Voltage 35V
Base Part Number SPT02
Applications General Purpose
Terminal Finish Matte Tin (Sn)
Type Zener
Compliance
RoHS Status ROHS3 Compliant
