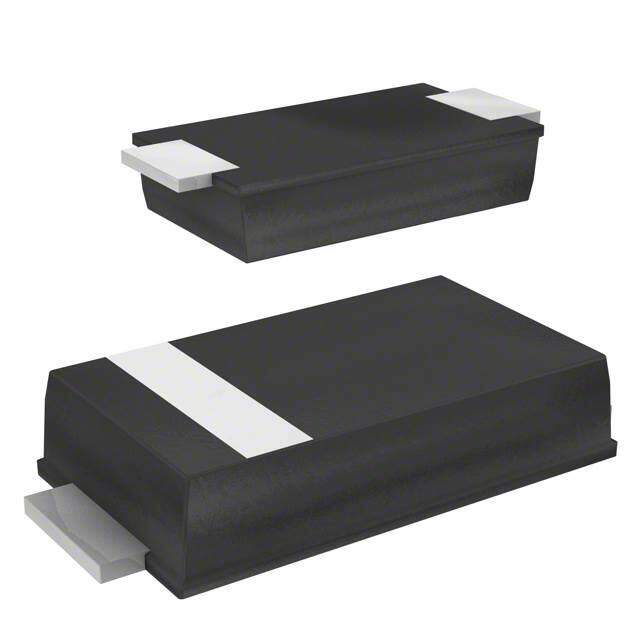

SMTYF5.0A
RoHS
RoHS compliant
RoHS compliantPackage DO-221AC, SMA Flat Leads
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5VWM 13.4VC SMAFLAT
PDF
/
Inventory: 5171
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Number of Pins 2
Diode Element Material SILICON
Technical
Operating Temperature -40°C~175°C TJ
Packaging Tape & Reel (TR)
Series SMTY, Transky?
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Zener
Terminal Finish Matte Tin (Sn) - annealed
Applications General Purpose
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Base Part Number SMTY
Pin Count 2
Operating Supply Voltage 5V
Number of Elements 1
Leakage Current 10μA
Element Configuration Single
Power Line Protection No
Current - Peak Pulse (10/1000μs) 298A 8/20μs
Max Reverse Leakage Current 10μA
Voltage - Clamping (Max) @ Ipp 13.4V
Clamping Voltage 13.4V
Peak Pulse Current 298A
Reverse Standoff Voltage 5V
Max Surge Current 298A
Peak Pulse Power 600W
Direction Unidirectional
Test Current 10mA
Breakdown Voltage 6.4V
Reverse Breakdown Voltage 6.4V
Number of Unidirectional Channels 1
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
