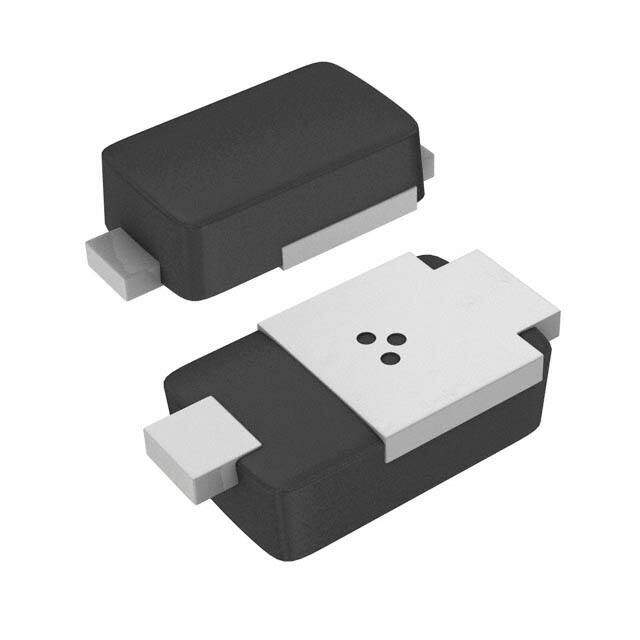

SMM4F8.5A-TR image
Favorite
SMM4F8.5A-TR image
Favorite

SMM4F8.5A-TR

STMicroelectronics
RoHS
RoHS RoHS compliant
Package DO-222AA
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 8.5VWM 19.5VC DO222AA
PDF
/
Inventory: 6223
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Number of Unidirectional Channels 1
Reverse Breakdown Voltage 9.5V
Breakdown Voltage 9.5V
Test Current 1mA
Direction Unidirectional
Peak Pulse Power 400W
Max Surge Current 124A
Reverse Standoff Voltage 8.5V
Peak Pulse Current 124A
Clamping Voltage 19.5V
Voltage - Clamping (Max) @ Ipp 19.5V
Max Reverse Leakage Current 10μA
Current - Peak Pulse (10/1000μs) 124A 8/20μs
Power Line Protection No
Element Configuration Single
Leakage Current 10μA
Number of Elements 1
Operating Supply Voltage 8.5V
Pin Count 3
Base Part Number SMM4F
Terminal Form FLAT
Terminal Position DUAL
Technology AVALANCHE
Subcategory Transient Suppressors
Applications General Purpose
Type Zener
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SMM4F, TRANSIL?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~175°C TJ

Physical

Diode Element Material SILICON
Number of Pins 2
Package / Case DO-222AA
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 11 Weeks
