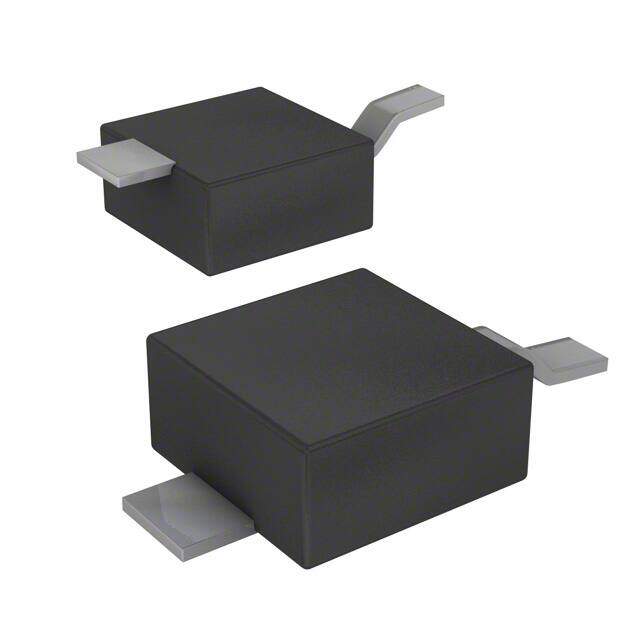

SMM4F28A-TR
RoHS
RoHS compliant
RoHS compliantPackage DO-216AA
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 28VWM 59VC DO216AA
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
≥10 USD $0.46816
≥100 USD $0.325336
≥500 USD $0.254038
≥1000 USD $0.206483
≥3000 USD $0.184589
Inventory: 9485
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-216AA
Number of Pins 2
Diode Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tape & Reel (TR)
Series SMM4F, TRANSIL?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Zener
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position DUAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) 260
Base Part Number SMM4F
Pin Count 3
Operating Supply Voltage 28V
Number of Elements 1
Leakage Current 200nA
Element Configuration Single
Power Dissipation 400W
Power Line Protection No
Current - Peak Pulse (10/1000μs) 39A 8/20μs
Max Reverse Leakage Current 200nA
Voltage - Clamping (Max) @ Ipp 59V
Clamping Voltage 59V
Peak Pulse Current 39A
Reverse Standoff Voltage 28V
Max Surge Current 39A
Peak Pulse Power 400W
Direction Unidirectional
Test Current 1mA
Breakdown Voltage 31.4V
Reverse Breakdown Voltage 31.4V
Max Breakdown Voltage 34.7V
Number of Unidirectional Channels 1
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
