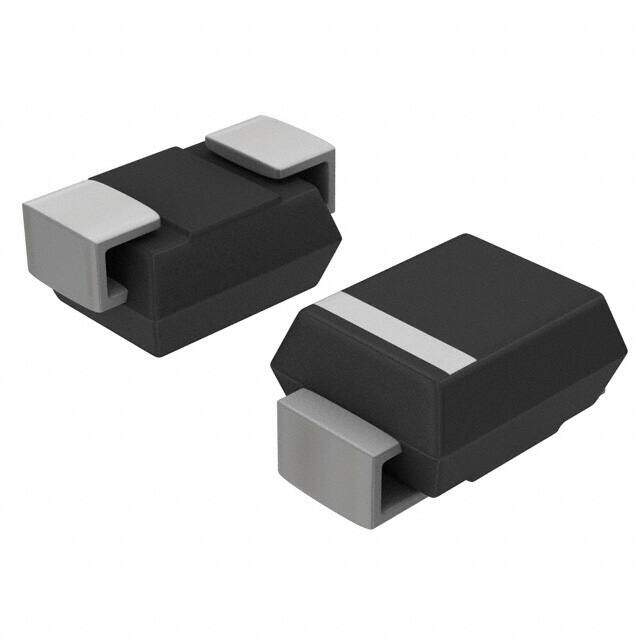

SMC30J16CA image
Favorite
SMC30J16CA image
Favorite

SMC30J16CA

STMicroelectronics
RoHS
RoHS RoHS compliant
Package DO-214AB, SMC
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 16VWM 26VC SMC
PDF
/
Inventory: 6173
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Length 7.15mm

Technical

Non-rep Peak Rev Power Dis-Max 3000W
Breakdown Voltage 17.8V
Direction Bidirectional
Peak Pulse Power 3kW
Reverse Standoff Voltage 16V
Peak Pulse Current 115A
Clamping Voltage 26V
Voltage - Clamping (Max) @ Ipp 26V
Current - Peak Pulse (10/1000μs) 115A
Power - Peak Pulse 3000W 3kW
Power Line Protection No
Element Configuration Single
Leakage Current 200nA
Number of Channels 1
Working Voltage 16V
Number of Elements 1
Pin Count 2
Base Part Number SMC30J
Depth 6.25mm
Terminal Form C BEND
Terminal Position DUAL
Technology AVALANCHE
Max Power Dissipation 3kW
Applications General Purpose
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Series SMC30J, TRANSIL?
Packaging Cut Tape (CT)
Operating Temperature -55°C~175°C TJ

Physical

Diode Element Material SILICON
Number of Pins 2
Package / Case DO-214AB, SMC
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 6 months ago)
