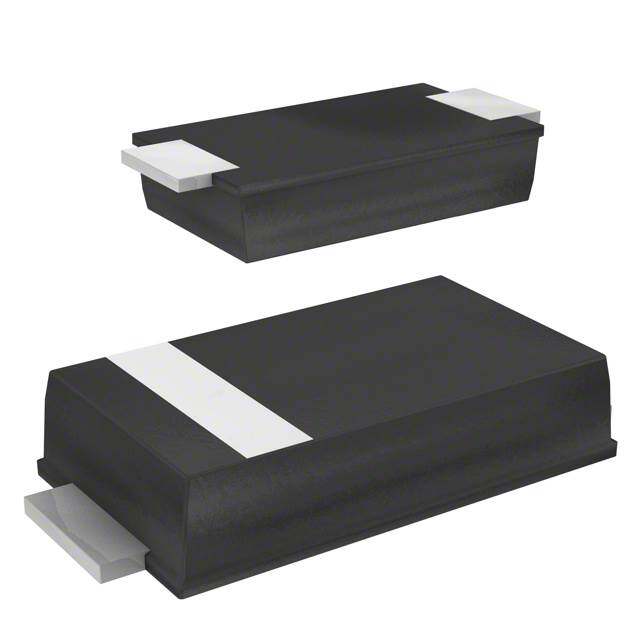

SMA4F22A
RoHS
RoHS compliant
RoHS compliantPackage DO-221AC, SMA Flat Leads
Category Circuit Protection / TVS - Diodes
Description
400 W TVS IN SMA FLAT
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.2904
≥100 USD $0.17424
≥500 USD $0.161322
≥1000 USD $0.109692
≥3000 USD $0.100989
Inventory: 1597
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Clamping (Max) @ Ipp 48.3V
Current - Peak Pulse (10/1000μs) 11.2A
Power - Peak Pulse 400W
Voltage - Breakdown (Min) 24.4V
Power Line Protection No
Base Part Number SMA4F
Time@Peak Reflow Temperature-Max (s) 10
Reach Compliance Code compliant
Peak Reflow Temperature (Cel) 260
Applications General Purpose
Type Zener
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SMA4F, TRANSIL?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~175°C TJ
Physical
Package / Case DO-221AC, SMA Flat Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
