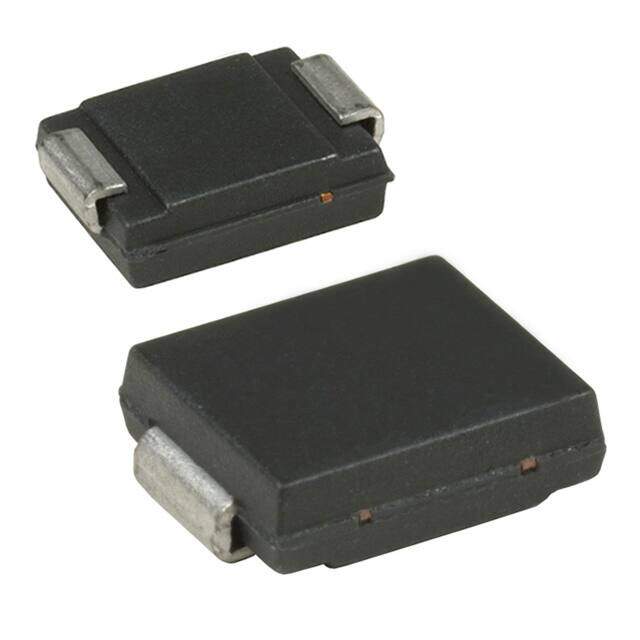

SM15T220CA
RoHS
RoHS compliant
RoHS compliantPackage DO-214AB, SMC
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 188V 388V SMC
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.298258
≥1 USD $0.298258
≥10 USD $0.243316
≥100 USD $0.219769
Inventory: 6
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 6.25mm
Length 7.15mm
Height 2.65mm
Technical
Max Junction Temperature (Tj) 150°C
Max Breakdown Voltage 231V
Reverse Breakdown Voltage 209V
Breakdown Voltage 209V
Test Current 1mA
Direction Bidirectional
Peak Pulse Power 1.5kW
Max Surge Current 4.6A
Reverse Standoff Voltage 188V
Peak Pulse Current 4.6A
Clamping Voltage 328V
Voltage - Clamping (Max) @ Ipp 388V
Max Reverse Leakage Current 200nA
Current - Peak Pulse (10/1000μs) 26A 8/20μs
Power - Peak Pulse 1500W 1.5kW
Power Line Protection No
Power Dissipation 1.5kW
Element Configuration Single
Leakage Current 200nA
Number of Channels 1
Number of Elements 1
Operating Supply Voltage 188V
Pin Count 2
Base Part Number SM15T
Time@Peak Reflow Temperature-Max (s) 10
Peak Reflow Temperature (Cel) 260
Terminal Form C BEND
Terminal Position DUAL
Technology AVALANCHE
Max Power Dissipation 1.5kW
Voltage - Rated DC 220V
Power Rating 1.5kW
Subcategory Transient Suppressors
Capacitance 625pF
Additional Feature UL RECOGNIZED
Applications General Purpose
Terminal Finish Matte Tin (Sn) - annealed
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series SM15T, TRANSIL?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-214AB, SMC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
