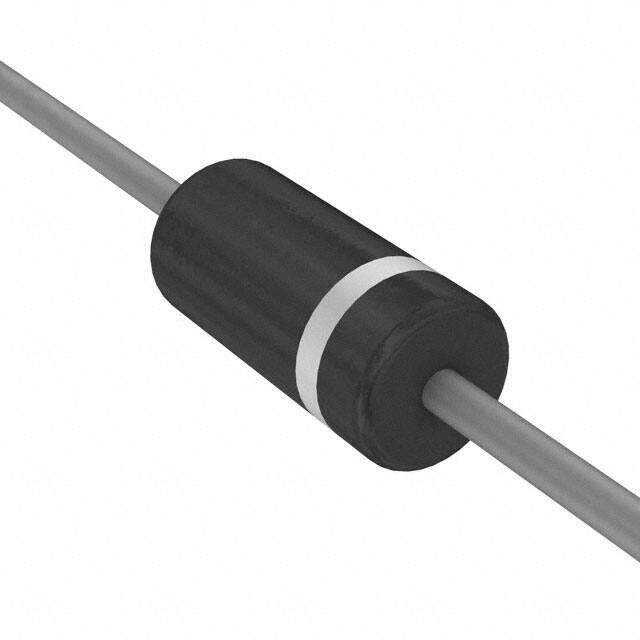

P6KE200A
RoHS
RoHS compliant
RoHS compliantPackage DO-204AC, DO-15, Axial
Category Circuit Protection / TVS - Diodes
Description
DO-204AC DO-15Axial P6KE TRANSIL? 1 Through Hole Zener Tvs Diode 190V 11.3A 8/20mus 3.53mm 600W
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.176
≥1 USD $0.176
Inventory: 352024
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 3.53mm
Length 6.75mm
Height 3.53mm
Diameter 3.53mm
Technical
Number of Unidirectional Channels 1
Max Breakdown Voltage 210V
Reverse Breakdown Voltage 190V
Capacitance @ Frequency 350pF @ 1MHz
Breakdown Voltage 190V
Test Current 1mA
Peak Pulse Power 600W
Max Surge Current 1mA
Reverse Standoff Voltage 171V
Peak Pulse Current 11.3A
Clamping Voltage 353V
Max Reverse Leakage Current 500μA
Current - Peak Pulse (10/1000μs) 11.3A 8/20μs
Power Line Protection No
Case Connection ISOLATED
Power Dissipation 5W
Element Configuration Single
Leakage Current 500μA
Polarity Unidirectional
Number of Elements 1
Operating Supply Voltage 171V
Pin Count 2
Base Part Number P6KE
Terminal Form WIRE
Technology AVALANCHE
Max Power Dissipation 600W
Voltage - Rated DC 200V
Power Rating 600W
Subcategory Transient Suppressors
Capacitance 350pF
Additional Feature UL RECOGNIZED
Applications General Purpose
Min Operating Temperature -65°C
Max Operating Temperature 175°C
Type Zener
ECCN Code EAR99
Termination Axial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series P6KE, TRANSIL?
Packaging Tape & Box (TB)
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-204AC, DO-15, Axial
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 11 Weeks
