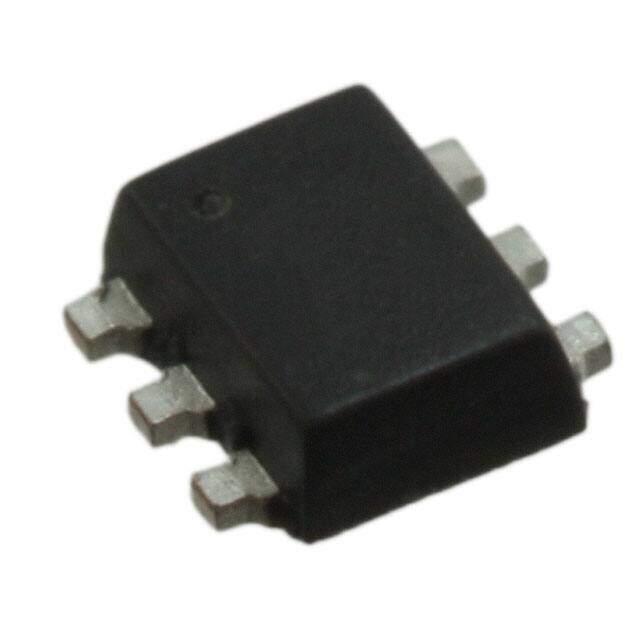

HSP062-2P6
RoHS
RoHS compliant
RoHS compliantPackage SOT-563, SOT-666
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 3VWM 18VC SOT666
PDF
/
Inventory: 8847
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 1.7mm
Length 1.7mm
Height 600μm
Technical
Max Breakdown Voltage 6V
Capacitance @ Frequency 0.6pF @ 200MHz~3GHz
Breakdown Voltage 6V
Direction Unidirectional
Reverse Standoff Voltage 3V
Peak Pulse Current 3A
Clamping Voltage 18V
Voltage - Clamping (Max) @ Ipp 18V Typ
Max Reverse Leakage Current 100nA
Current - Peak Pulse (10/1000μs) 3A 8/20μs
Power Line Protection Yes
Element Configuration Dual
Leakage Current 100nA
Number of Channels 2
Polarity Bidirectional
Working Voltage 3V
Base Part Number HSP062
Depth 1.3mm
Capacitance 900FF
HTS Code 8541.10.00.50
Applications Ethernet, HDMI
Type Steering (Rail to Rail)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series HSP
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 6
Package / Case SOT-563, SOT-666
Mounting Type Surface Mount
Mount Surface Mount
