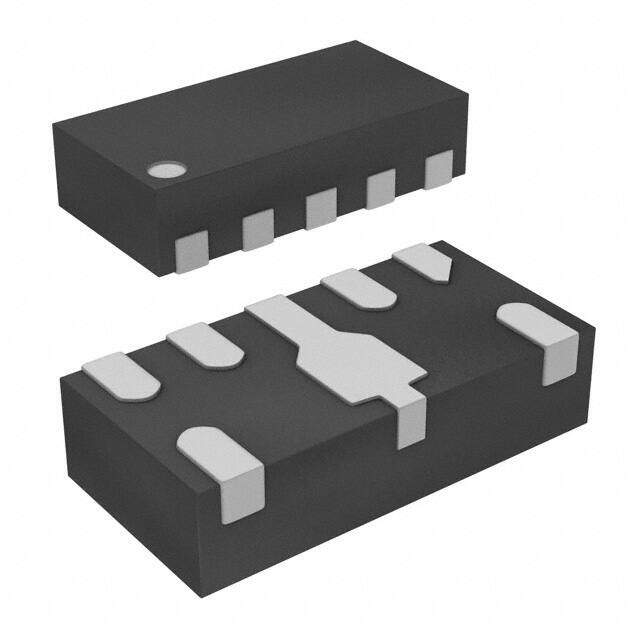

HSP061-4NY8
RoHS
RoHS compliant
RoHS compliantPackage 8-UFDFN
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 3V 18V 8UQFN
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.58608
≥100 USD $0.405592
≥500 USD $0.338906
≥1000 USD $0.288429
≥3000 USD $0.256881
Inventory: 31841
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-UFDFN
Number of Pins 8
Diode Element Material SILICON
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series HSP
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
Termination SMD/SMT
ECCN Code EAR99
Type Steering (Rail to Rail)
Terminal Finish NICKEL PALLADIUM GOLD
Applications HDMI
Capacitance 600FF
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Depth 1mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number HSP061
Pin Count 6
JESD-30 Code R-PDSO-N7
Number of Elements 1
Working Voltage 3V
Polarity UNIDIRECTIONAL
Configuration SINGLE
Number of Channels 4
Leakage Current 100nA
Power Line Protection Yes
Current - Peak Pulse (10/1000μs) 3A 8/20μs
Max Reverse Leakage Current 100nA
Voltage - Clamping (Max) @ Ipp 18V Typ
Clamping Voltage 18V
Peak Pulse Current 3A
Reverse Standoff Voltage 3V
Direction Bidirectional
Breakdown Voltage 6V
Capacitance @ Frequency 0.5pF @ 200MHz~3GHz
Max Breakdown Voltage 6V
Max Junction Temperature (Tj) 150°C
Dimensions
Height 550μm
Length 2mm
Width 1.05mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
