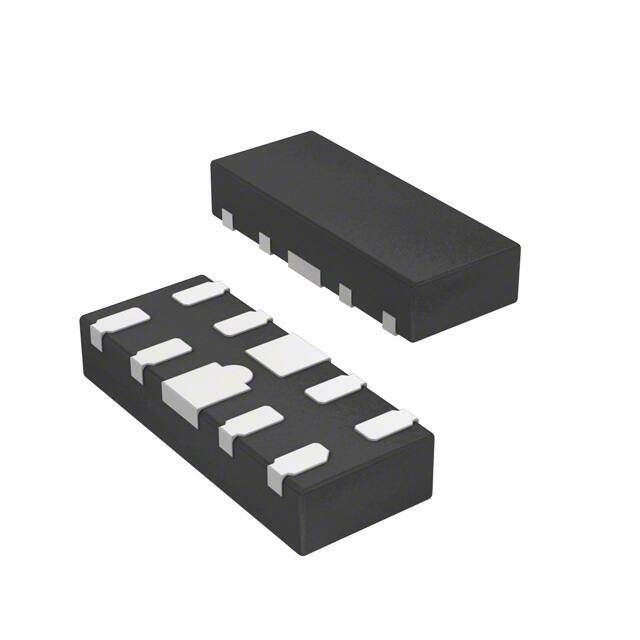

HSP061-4M10 image
Favorite
HSP061-4M10 image
Favorite

HSP061-4M10

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 10-XFDFN
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 3V 15V 10UQFN
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.26664
≥100 USD $0.160072
≥500 USD $0.14821
≥1000 USD $0.100778
Inventory: 18497
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 1.1mm
Length 2.5mm
Height 450μm

Technical

Capacitance @ Frequency 0.6pF @ 1MHz
Breakdown Voltage 6V
Direction Unidirectional
Reverse Standoff Voltage 3V
Peak Pulse Current 1A
Clamping Voltage 15V
Max Reverse Leakage Current 70nA
Current - Peak Pulse (10/1000μs) 1A 8/20μs
Power Line Protection Yes
Leakage Current 70nA
Number of Channels 4
Polarity Bidirectional
Working Voltage 3V
Base Part Number HSP061
Depth 1mm
Subcategory Transient Suppressors
Capacitance 800FF
Applications HDMI
Type Steering (Rail to Rail)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series HSP
Packaging Cut Tape (CT)
Operating Temperature -40°C~150°C TJ

Physical

Number of Pins 10
Package / Case 10-XFDFN
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 11 Weeks
