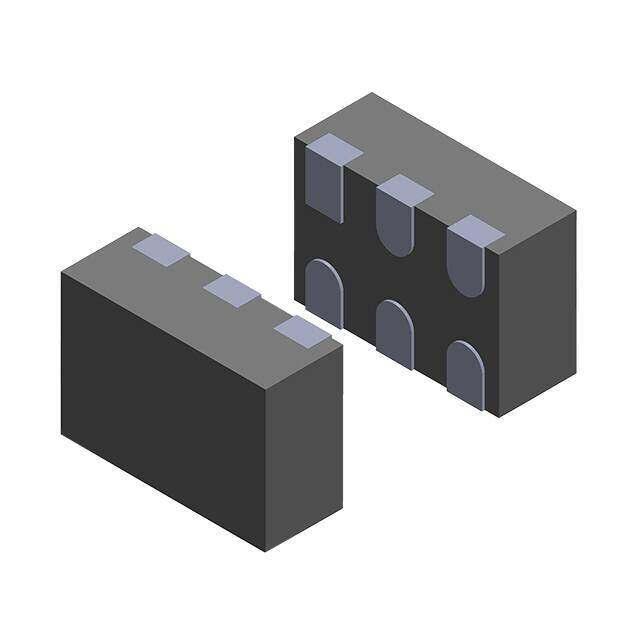

HDMIULC6-2M6
RoHS
RoHS compliant
RoHS compliantPackage 6-UFDFN
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5VWM 17VC 6VFQFPN
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.1704
≥1 USD $1.1704
≥10 USD $0.95744
≥100 USD $0.744744
≥500 USD $0.631242
≥1000 USD $0.514219
Inventory: 1535
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-UFDFN
Number of Pins 6
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Series HDMI
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Termination SMD/SMT
ECCN Code EAR99
Type Steering (Rail to Rail)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Applications Ethernet, HDMI
Additional Feature HIGH RELIABILITY
Capacitance 850FF
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Form FLAT
Peak Reflow Temperature (Cel) 260
Depth 1mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number HDMIULC6
Pin Count 6
Number of Elements 1
Working Voltage 5V
Polarity Unidirectional
Number of Channels 2
Leakage Current 500nA
Element Configuration Dual
Power Line Protection Yes
Current - Peak Pulse (10/1000μs) 5A 8/20μs
Clamping Voltage 17V
Peak Pulse Current 5A
Reverse Standoff Voltage 5V
Test Current 1mA
Breakdown Voltage 6V
Capacitance @ Frequency 0.85pF @ 825MHz
Reverse Breakdown Voltage 6V
Max Breakdown Voltage 6V
Dimensions
Length 1.45mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
