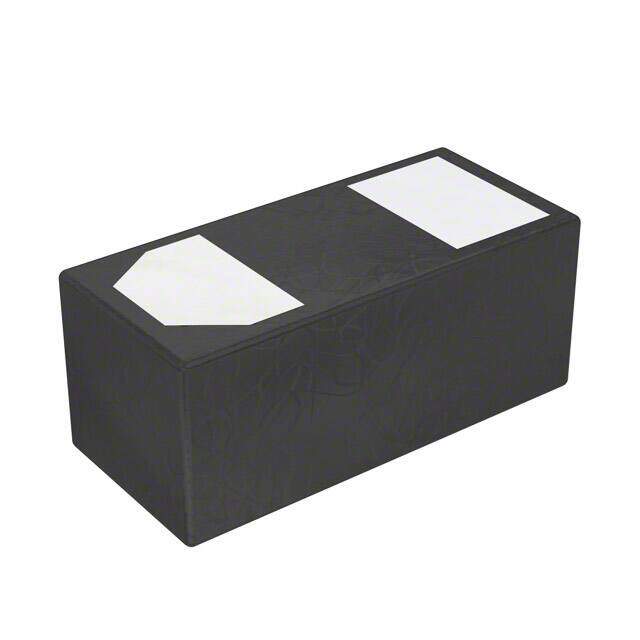

ESDAXLC6-1BU2
RoHS
RoHS compliant
RoHS compliantPackage 0201 (0603 Metric)
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 3V 17V ST0201
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.18216
≥100 USD $0.088792
≥500 USD $0.074043
≥1000 USD $0.051445
≥3000 USD $0.04459
Inventory: 20726
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 350μm
Length 600μm
Height 330μm
Technical
ESD Protection Yes
Capacitance @ Frequency 0.4pF @ 200MHz~3GHz
Breakdown Voltage 6V
Test Current 1mA
Direction Bidirectional
Peak Pulse Power 40W
Max Surge Current 1.3A
Reverse Standoff Voltage 3V
Peak Pulse Current 1A
Clamping Voltage 17V
Max Reverse Leakage Current 70nA
Current - Peak Pulse (10/1000μs) 1A 8/20μs
Power Line Protection No
Element Configuration Single
Leakage Current 70nA
Number of Channels 1
Polarity Bidirectional
Case Code (Imperial) 0201
Case Code (Metric) 0603
Base Part Number ESDAXLC6
Depth 300μm
Subcategory Transient Suppressors
Capacitance 500FF
Applications General Purpose
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ESDA
Packaging Cut Tape (CT)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 2
Package / Case 0201 (0603 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 9 Weeks
