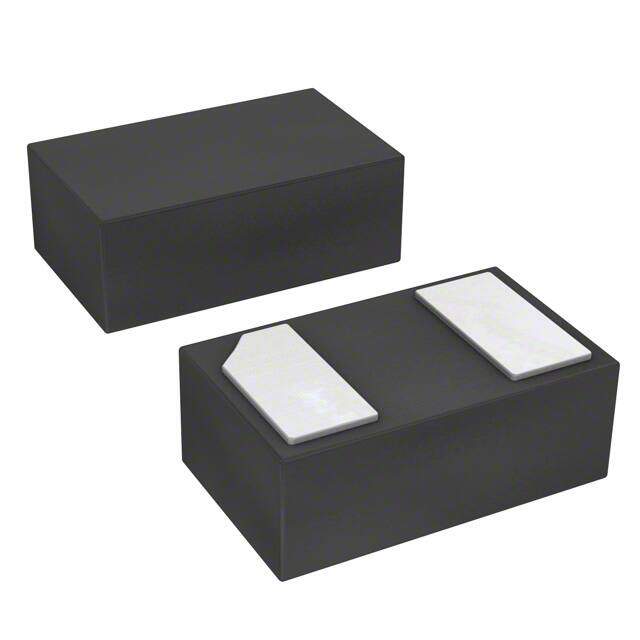

ESDAVLC12-1BV2
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Circuit Protection / TVS - Diodes
Description
Diode TVS Single Bi-Dir 10.5V 2-Pin ST01005 T/R
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0165
≥1 USD $1.0165
≥10 USD $0.8341
≥100 USD $0.80845
≥500 USD $0.78185
≥1000 USD $0.7562
Inventory: 20008
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 220μm
Length 420μm
Height 200μm
Technical
ESD Protection Yes
Series Resistance 2Ohm
Capacitance @ Frequency 7pF @ 1MHz
Bidirectional Channels 1
Direction Bidirectional
Reverse Standoff Voltage 10.5V
Peak Pulse Current 1.5A
Clamping Voltage 20V
Max Reverse Leakage Current 70nA
Current - Peak Pulse (10/1000μs) 1A 8/20μs
Voltage - Breakdown (Min) 12V
Power Line Protection No
Element Configuration Single
Number of Elements 1
Base Part Number ESDAVLC12
Terminal Position BOTTOM
Technology AVALANCHE
Capacitance 10pF
Additional Feature LOW CAPACITANCE
Applications General Purpose
Type Zener
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TJ
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 8 months ago)
