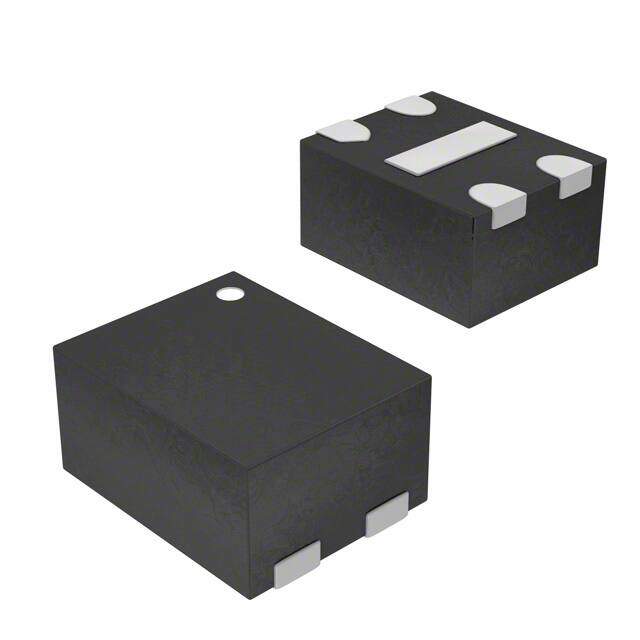

ESDALC5-4BN4 image
Favorite
ESDALC5-4BN4 image
Favorite

ESDALC5-4BN4

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 4-XFDFN Exposed Pad
Category Circuit Protection / TVS - Diodes
Description ESD Suppressors / TVS Diodes 4-ln Bi Transil ESD 5.5V 400uM 415kV
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2112
≥1 USD $0.2112
≥10 USD $0.18392
≥100 USD $0.156464
≥500 USD $0.139357
≥1000 USD $0.132255
≥3000 USD $0.117322
Inventory: 7283
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Length 800μm

Technical

Capacitance @ Frequency 13pF @ 1MHz
Bidirectional Channels 4
Breakdown Voltage 11V
Direction Bidirectional
Peak Pulse Power 60W
Reverse Standoff Voltage 5V
Peak Pulse Current 1A
Clamping Voltage 18V
Voltage - Clamping (Max) @ Ipp 14.5V
Current - Peak Pulse (10/1000μs) 1A 8/20μs
Voltage - Breakdown (Min) 5.5V
Power Line Protection No
Number of Channels 4
Working Voltage 5V
Base Part Number ESDALC5
Current Rating 4A
Depth 1mm
Max Power Dissipation 60W
Subcategory Transient Suppressors
Capacitance 15pF
Applications General Purpose
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series ESDA, TRANSIL?
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TJ

Physical

Package / Case 4-XFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
