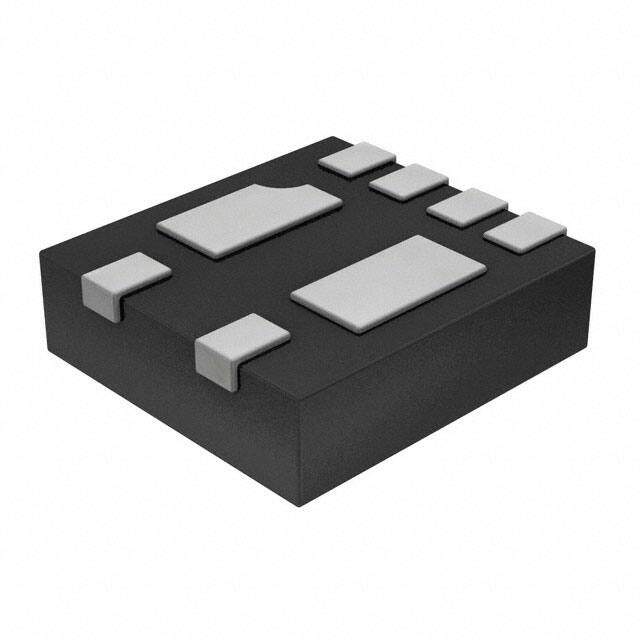

ESDA17P100-1U2M
RoHS
RoHS compliant
RoHS compliantPackage 6-UFDFN Exposed Pad
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 15V 30V 6UQFN
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.08715
≥1 USD $2.08715
≥10 USD $1.71285
≥100 USD $1.65965
≥500 USD $1.6055
≥1000 USD $1.5523
Inventory: 1284
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Physical
Mounting Type Surface Mount
Package / Case 6-UFDFN Exposed Pad
Surface Mount YES
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Series ESDA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Zener
Applications General Purpose
Technology AVALANCHE
Terminal Position DUAL
Base Part Number ESDA17
JESD-30 Code R-PDSO-N6
Number of Elements 1
Polarity UNIDIRECTIONAL
Configuration SINGLE
Power Line Protection No
Voltage - Breakdown (Min) 15.7V
Power - Peak Pulse 4800W 4.8kW
Current - Peak Pulse (10/1000μs) 160A 8/20μs
Voltage - Clamping (Max) @ Ipp 30V
Voltage - Reverse Standoff (Typ) 15V Max
Unidirectional Channels 1
Capacitance @ Frequency 1200pF @ 1MHz
Non-rep Peak Rev Power Dis-Max 4800W
Compliance
RoHS Status ROHS3 Compliant
