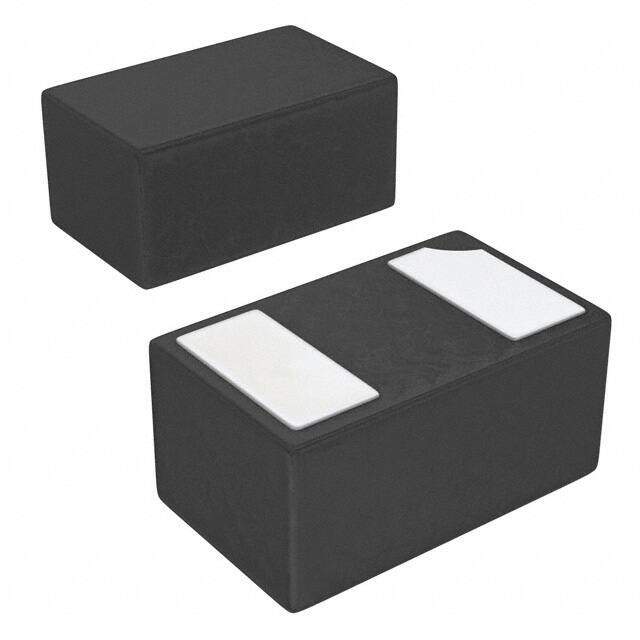

ESDA15P60-1U1M
RoHS
RoHS compliant
RoHS compliantPackage 2-UDFN
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 13.2V 22.7V 1610
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.3168
≥1 USD $0.3168
≥10 USD $0.24288
≥100 USD $0.145904
≥500 USD $0.135098
≥1000 USD $0.091863
≥3000 USD $0.084577
Inventory: 1473
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 13.2V Max
Voltage - Clamping (Max) @ Ipp 22.7V
Current - Peak Pulse (10/1000μs) 57A 8/20μs
Power - Peak Pulse 1200W 1.2kW
Voltage - Breakdown (Min) 13.6V
Power Line Protection No
Configuration SINGLE
Polarity UNIDIRECTIONAL
Number of Elements 1
JESD-30 Code R-PBCC-N2
Base Part Number ESDA15
Terminal Position BOTTOM
Technology AVALANCHE
Applications General Purpose
Type Zener
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ESDA
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case 2-UDFN
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 11 Weeks
